Product Details

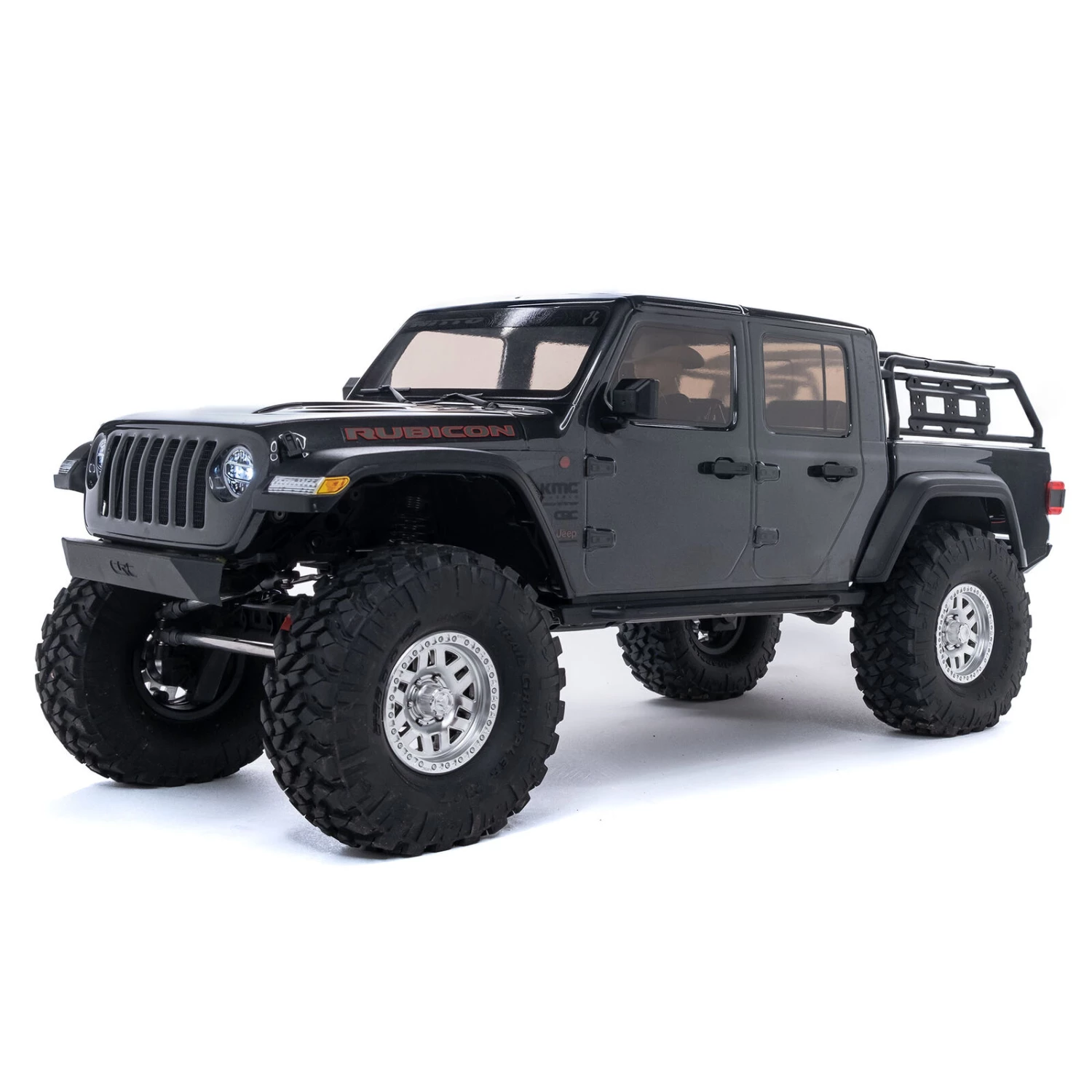

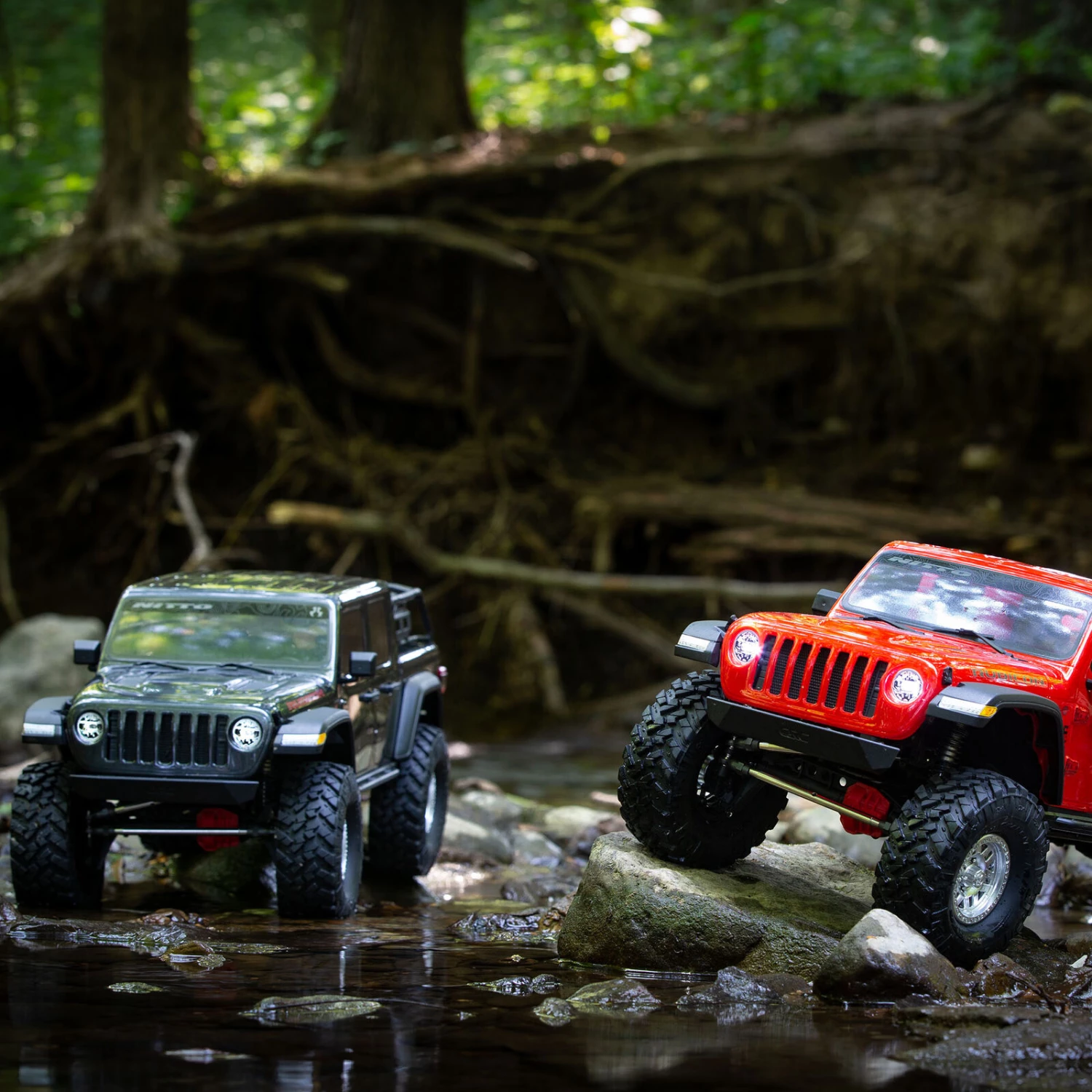

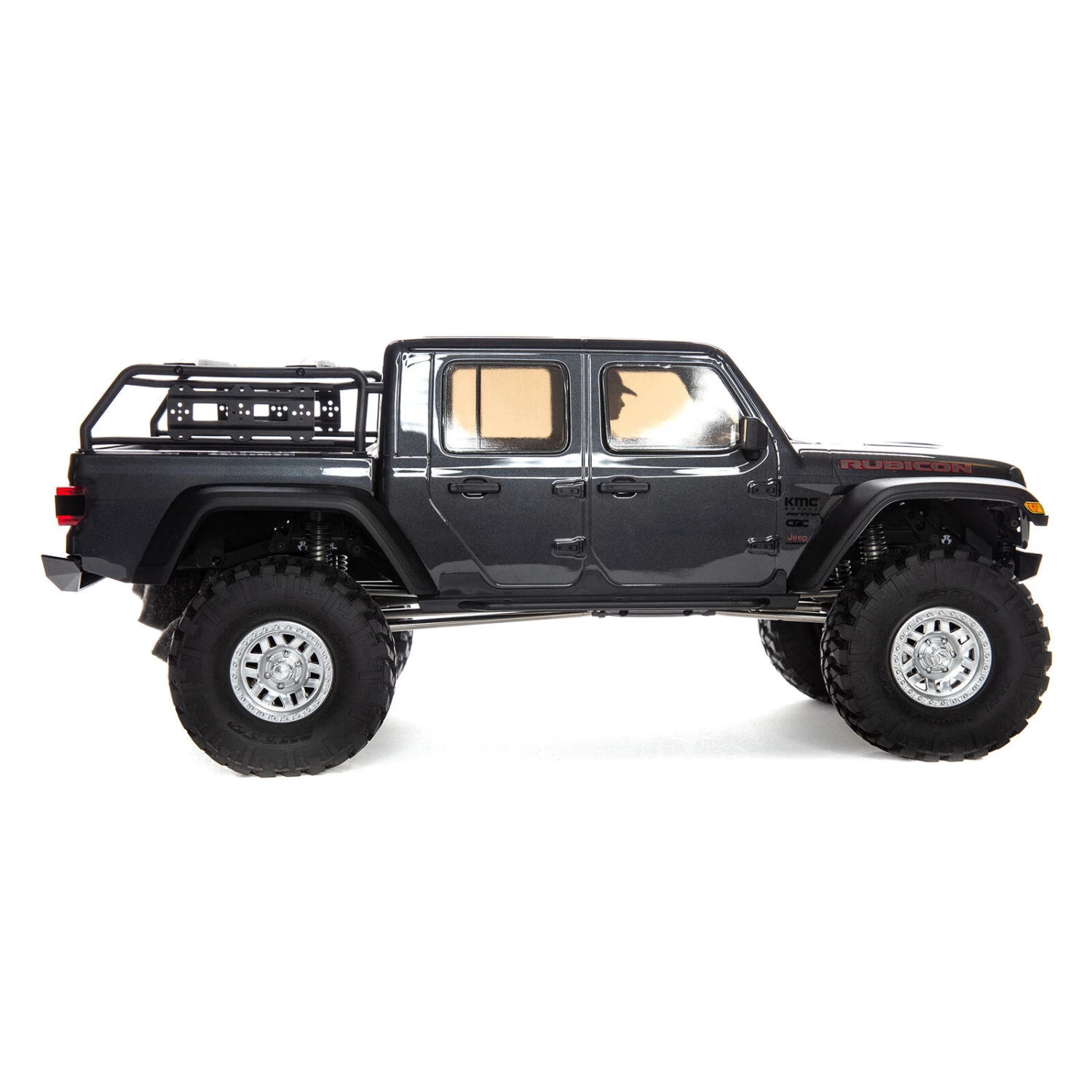

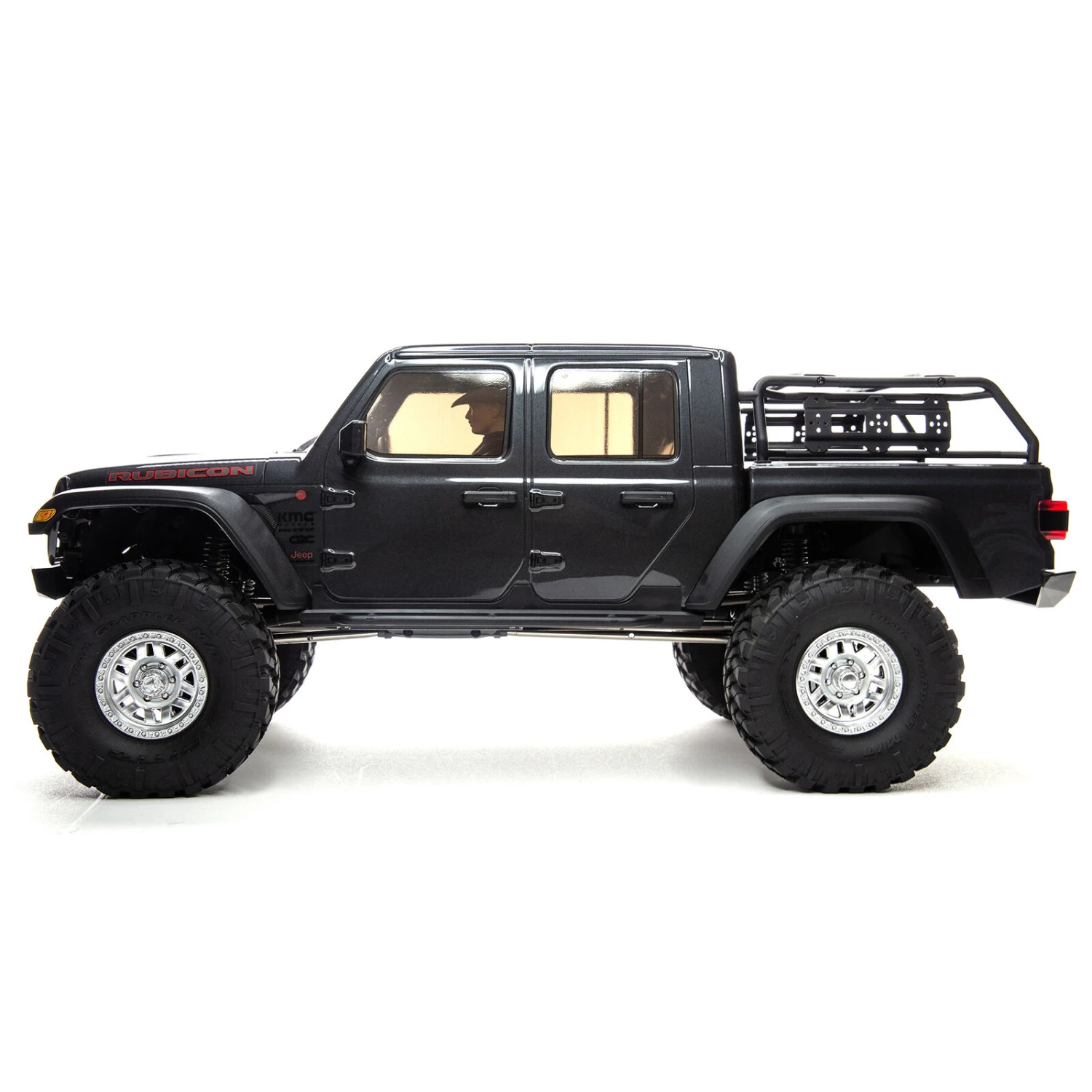

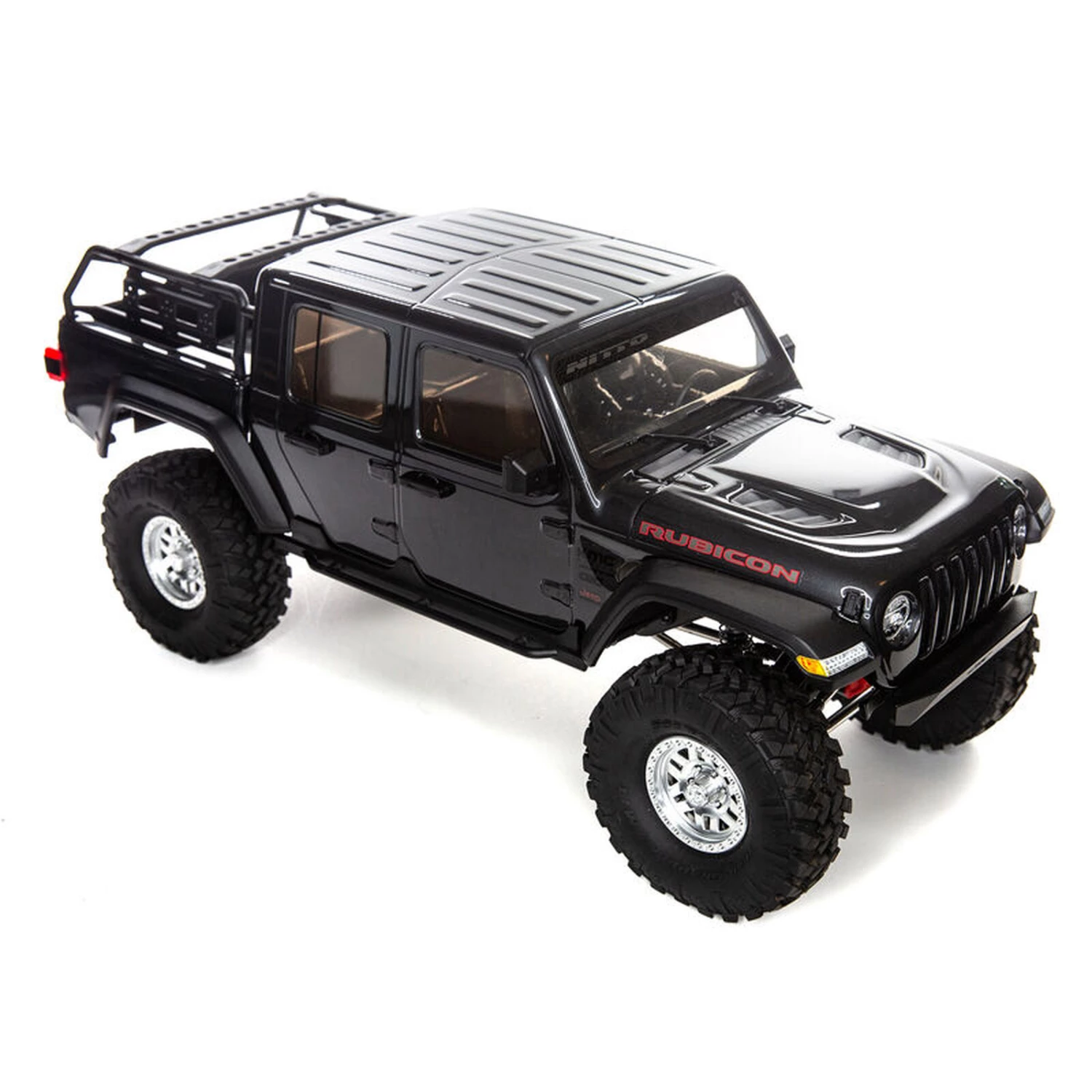

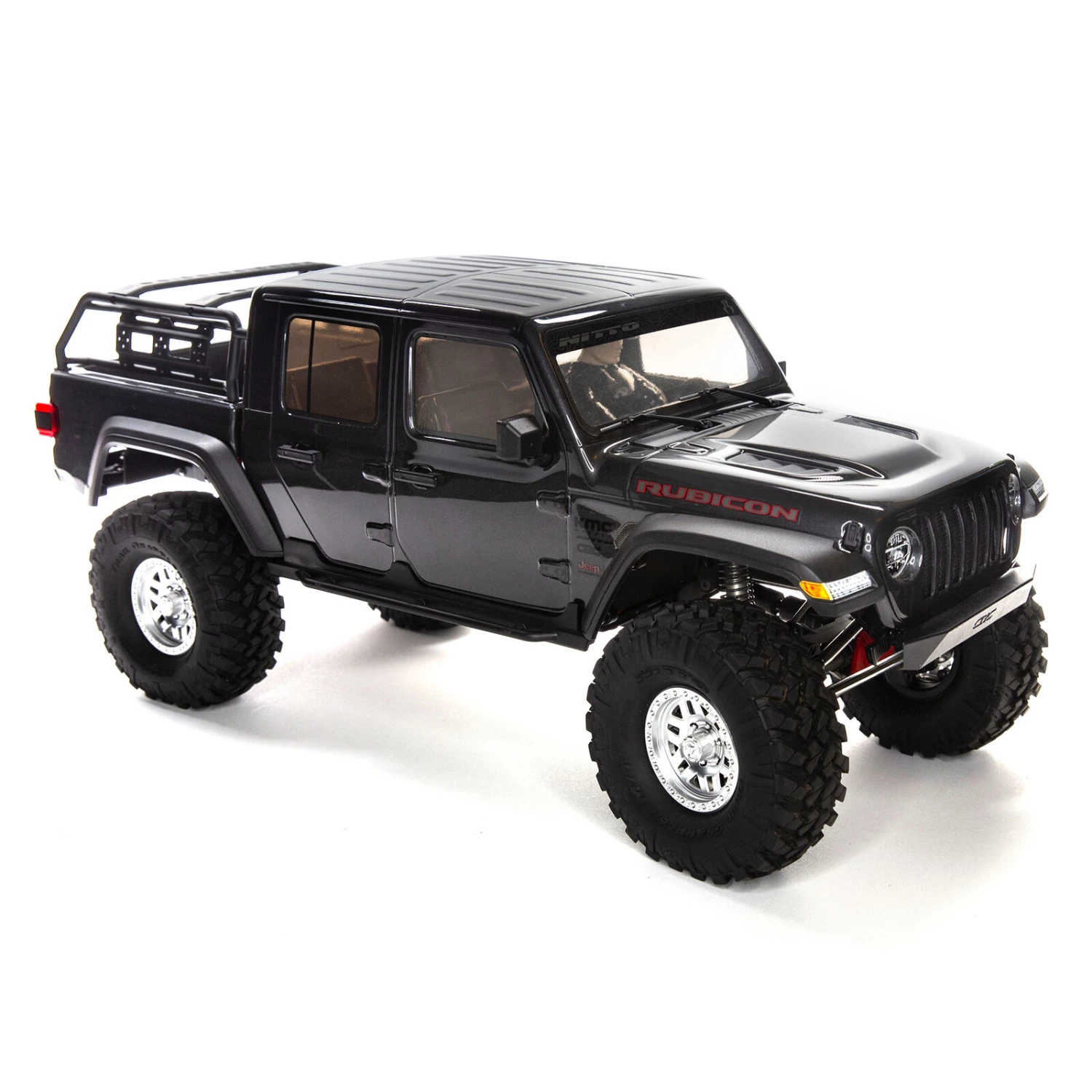

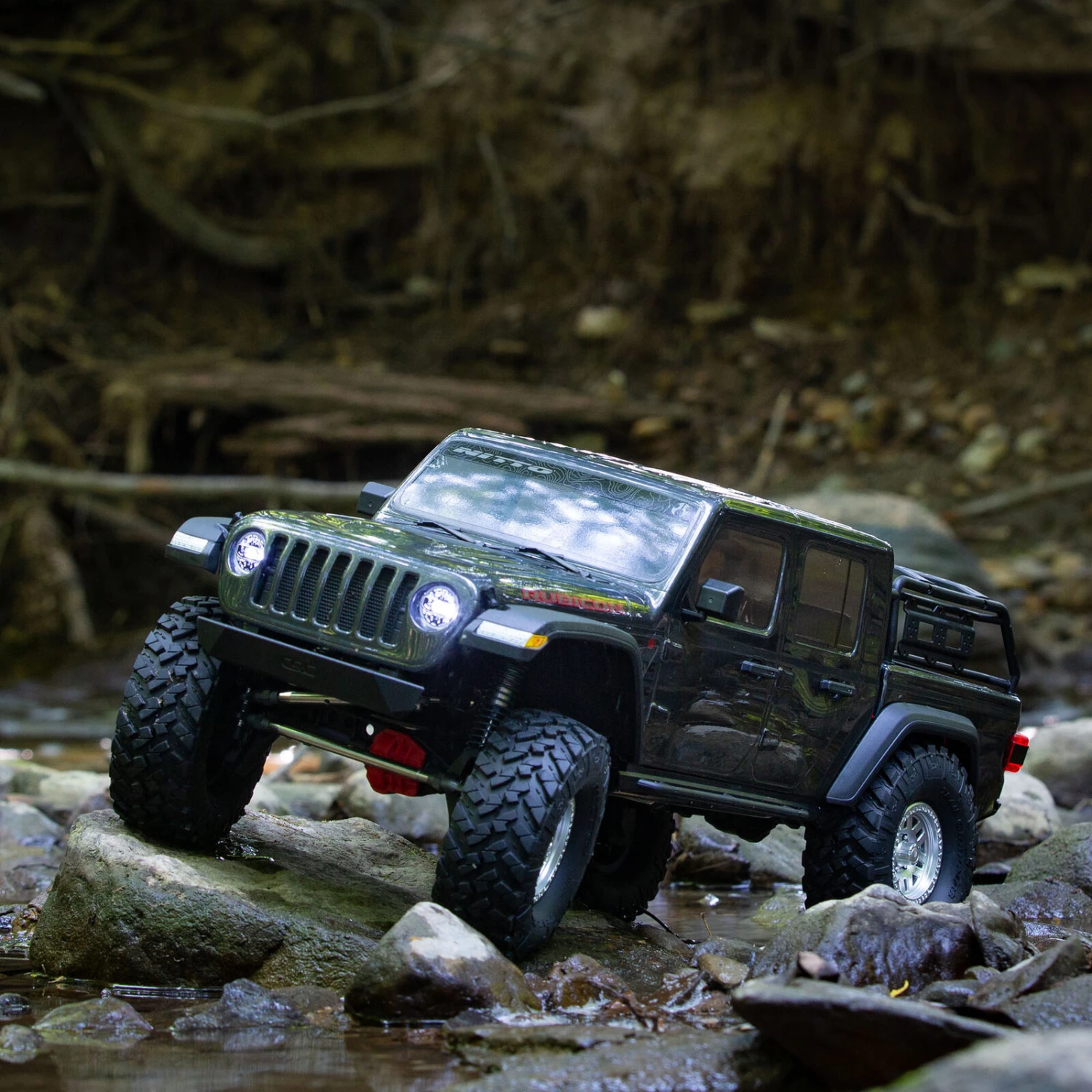

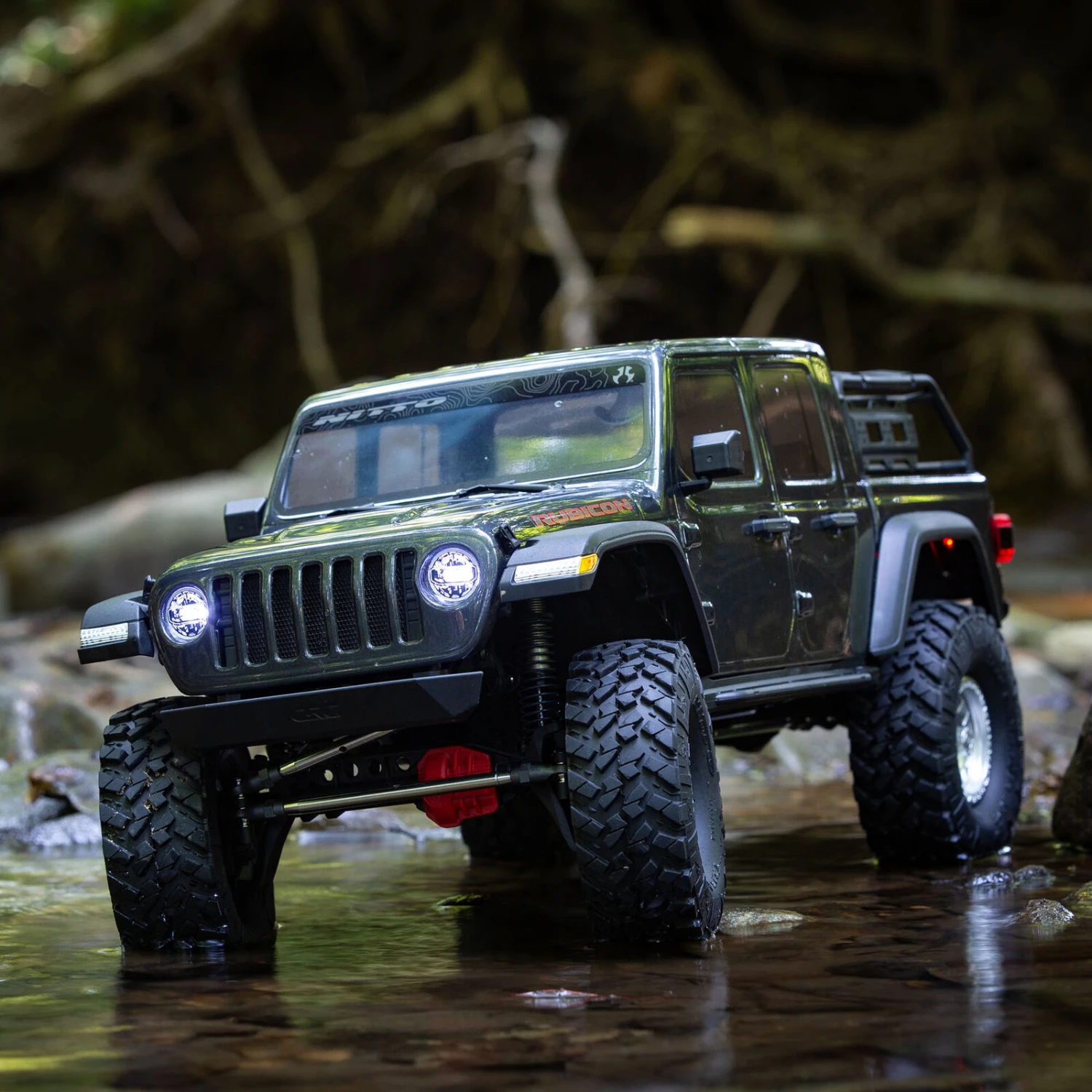

Axial® climbs to the peak of scale rock crawling with the ready-to-run SCX10™ III Jeep® JT Gladiator. The upgraded chassis offers a third-channel DIG function plus 14-inch wheelbase that allows Axial® to include a larger, more realistic 3-piece body.
Key Features

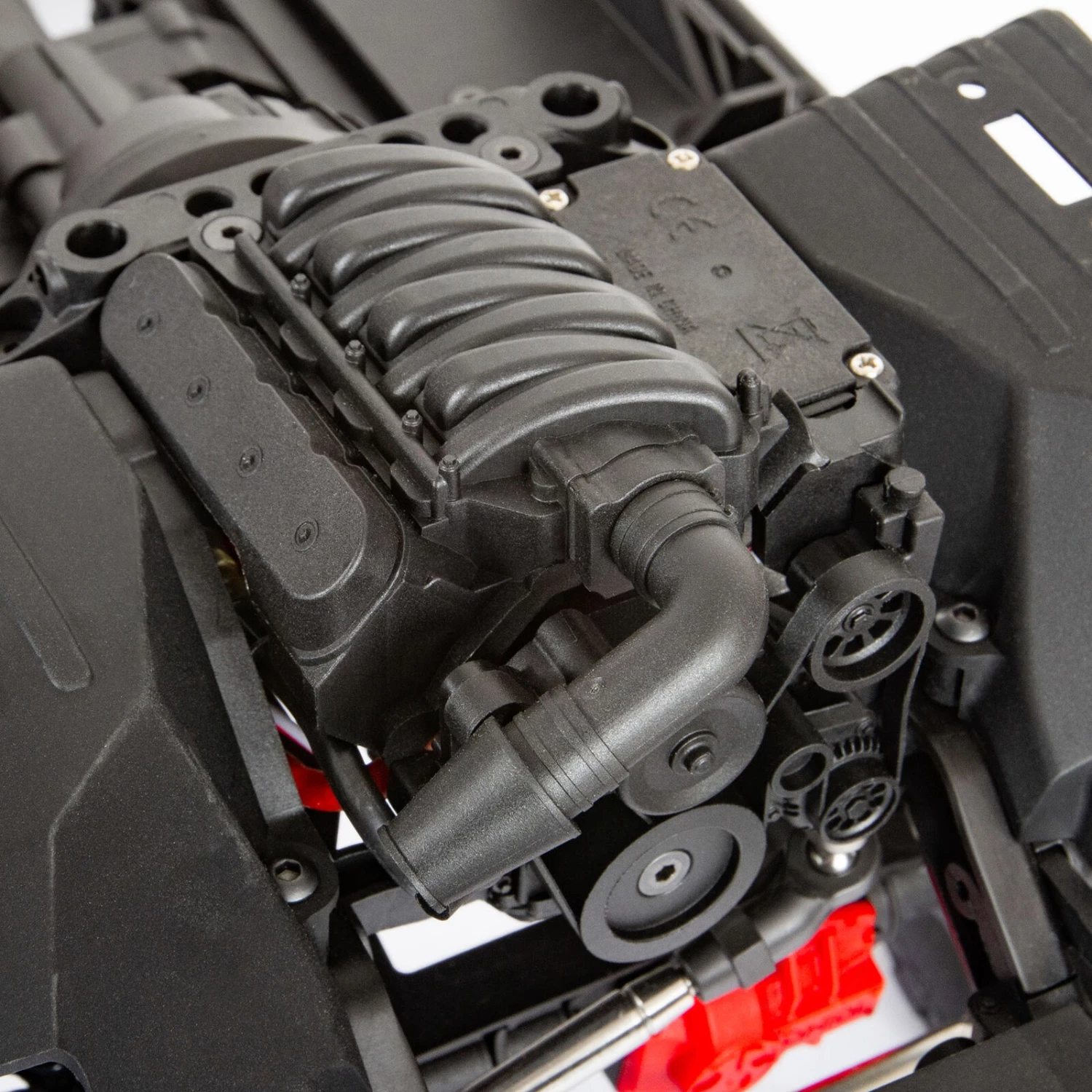

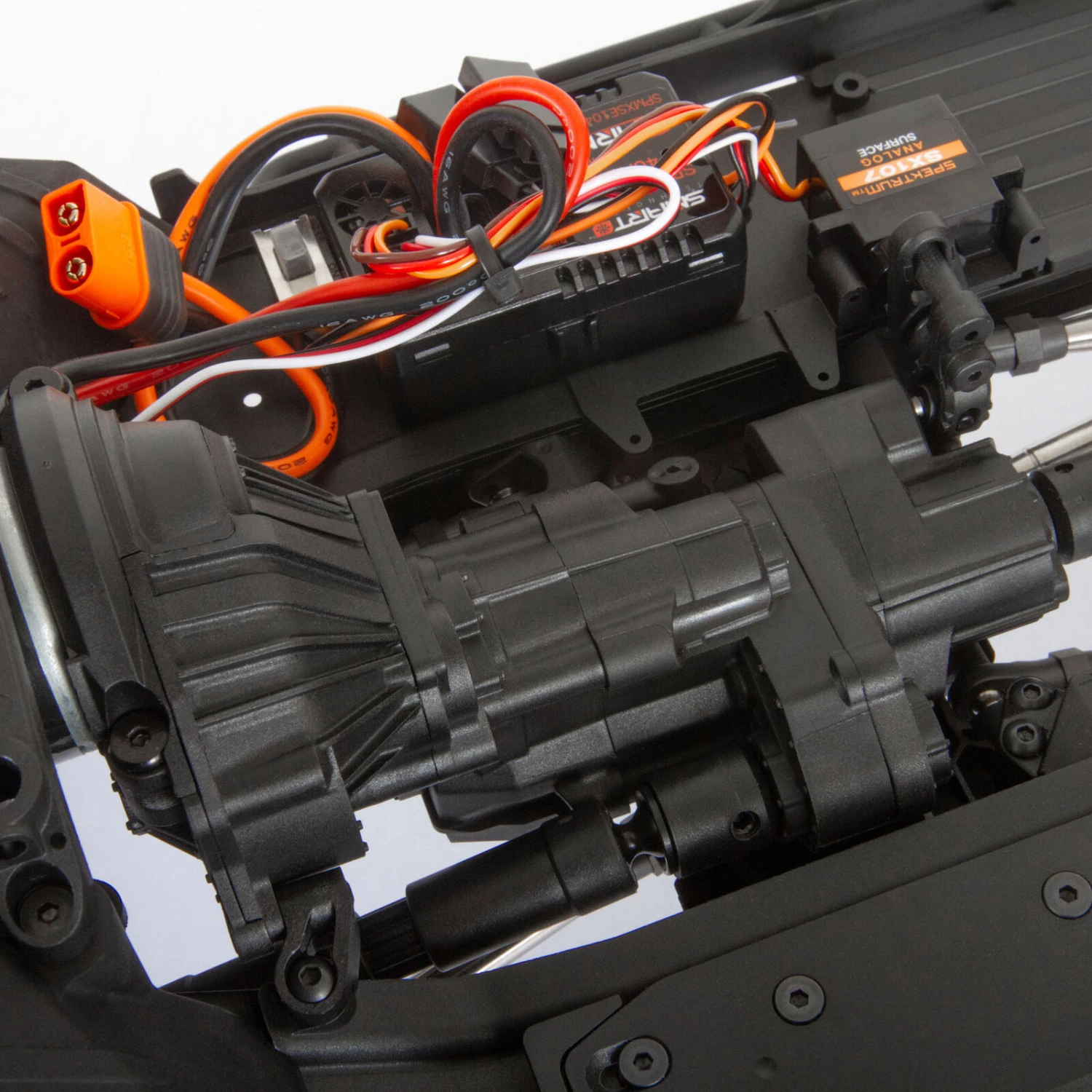

- Replica V8 engine cover, transmission housing and transfer case cover and protect the motor while improving scale appearance and adding forward-mounted weight.
- DIG function transmission option lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius.

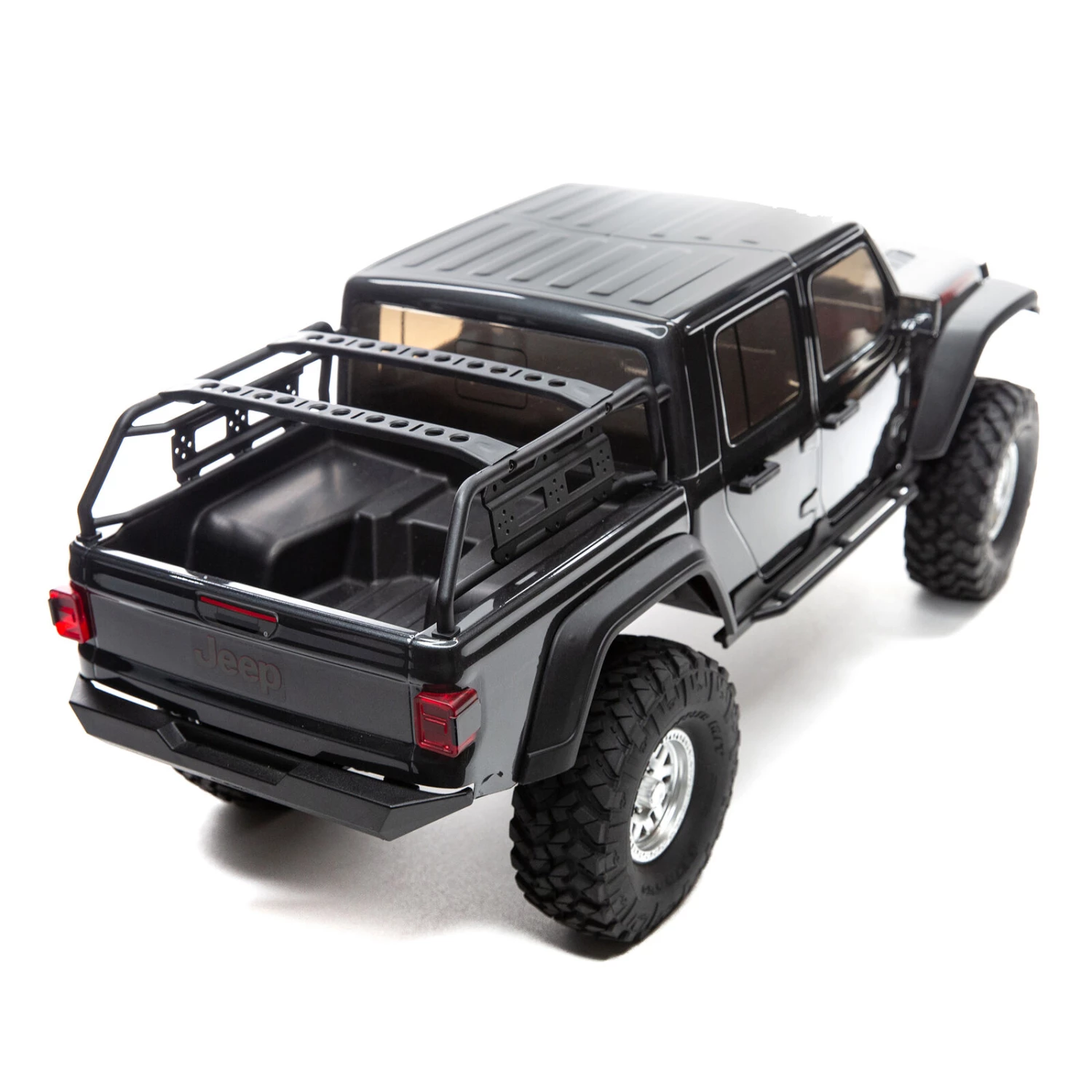

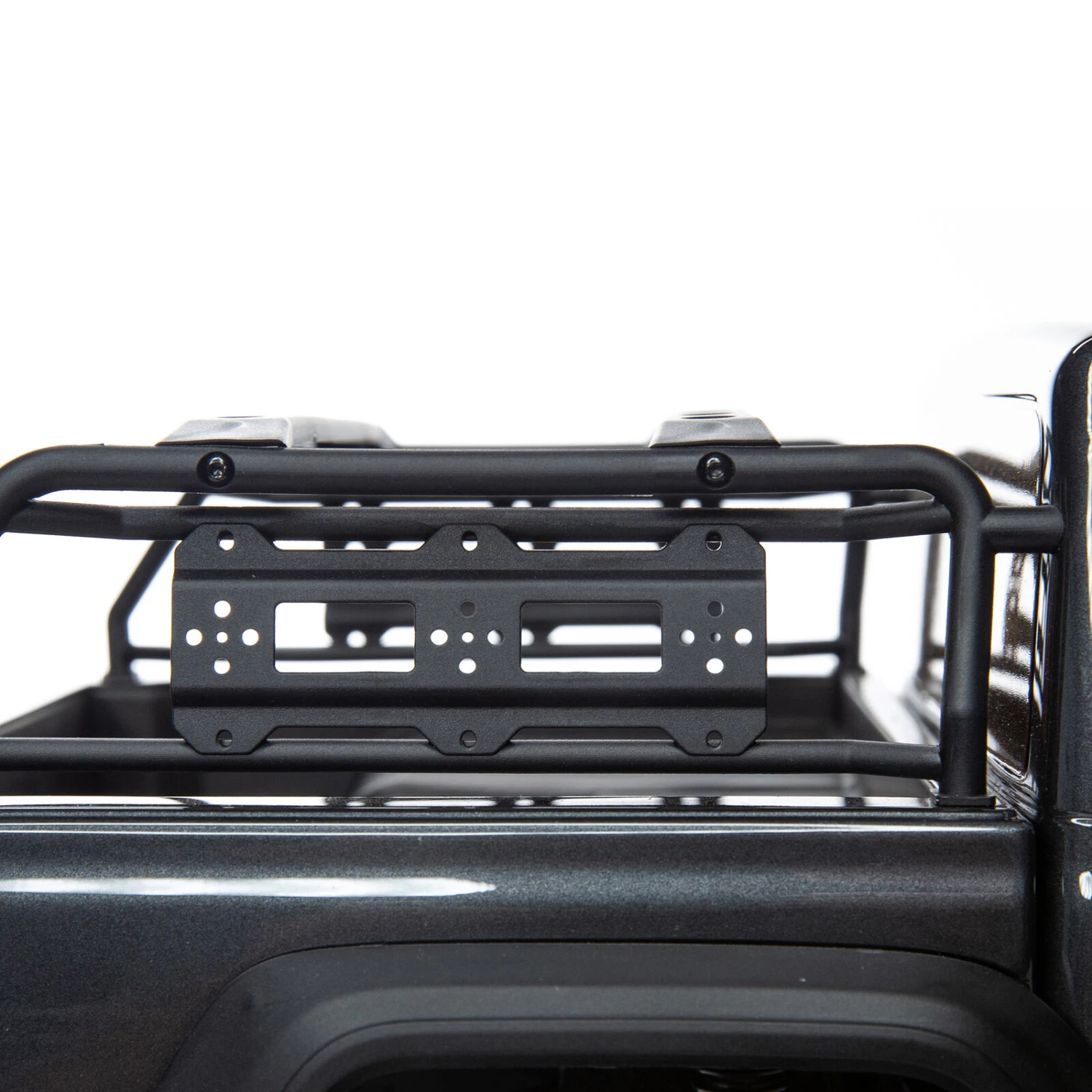

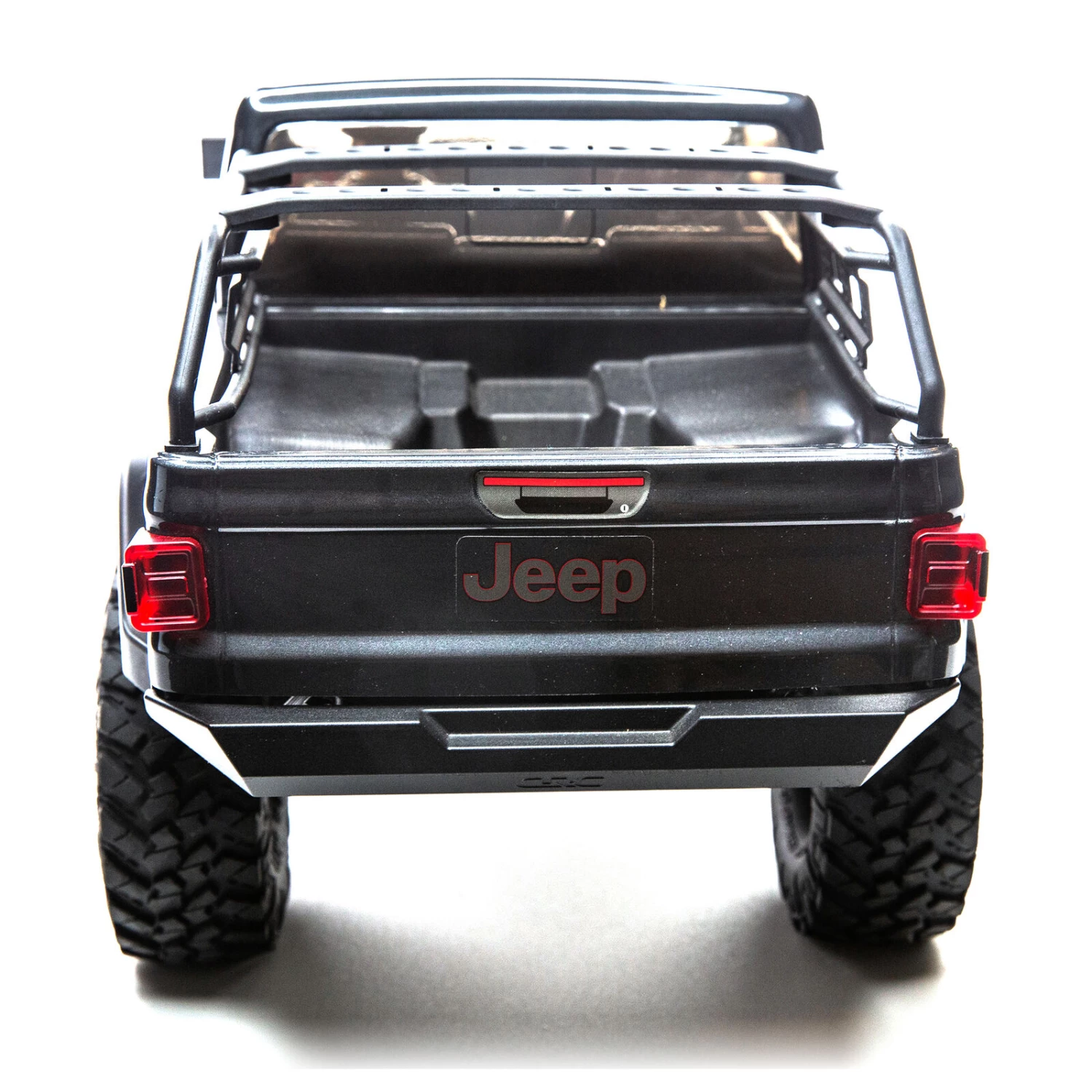

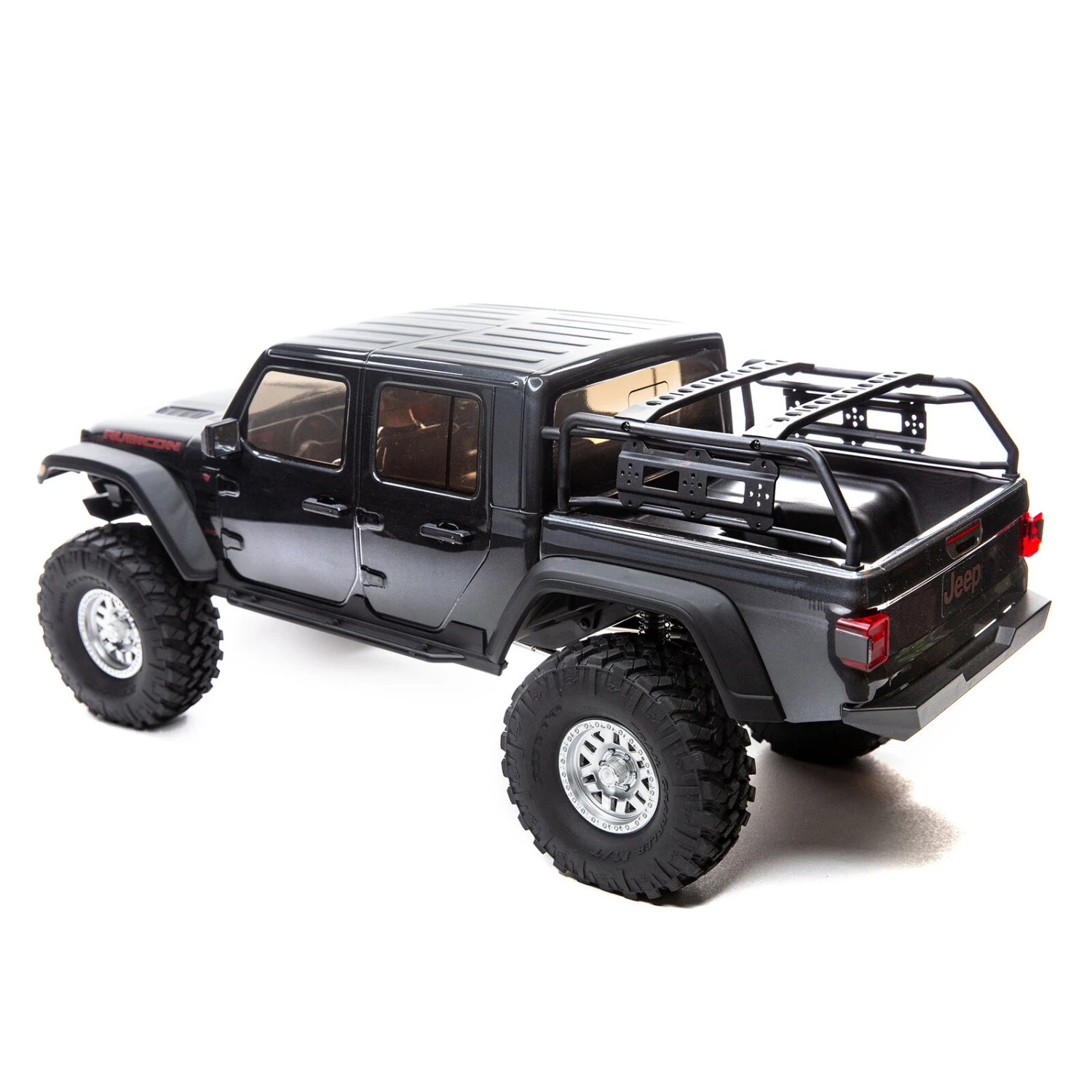

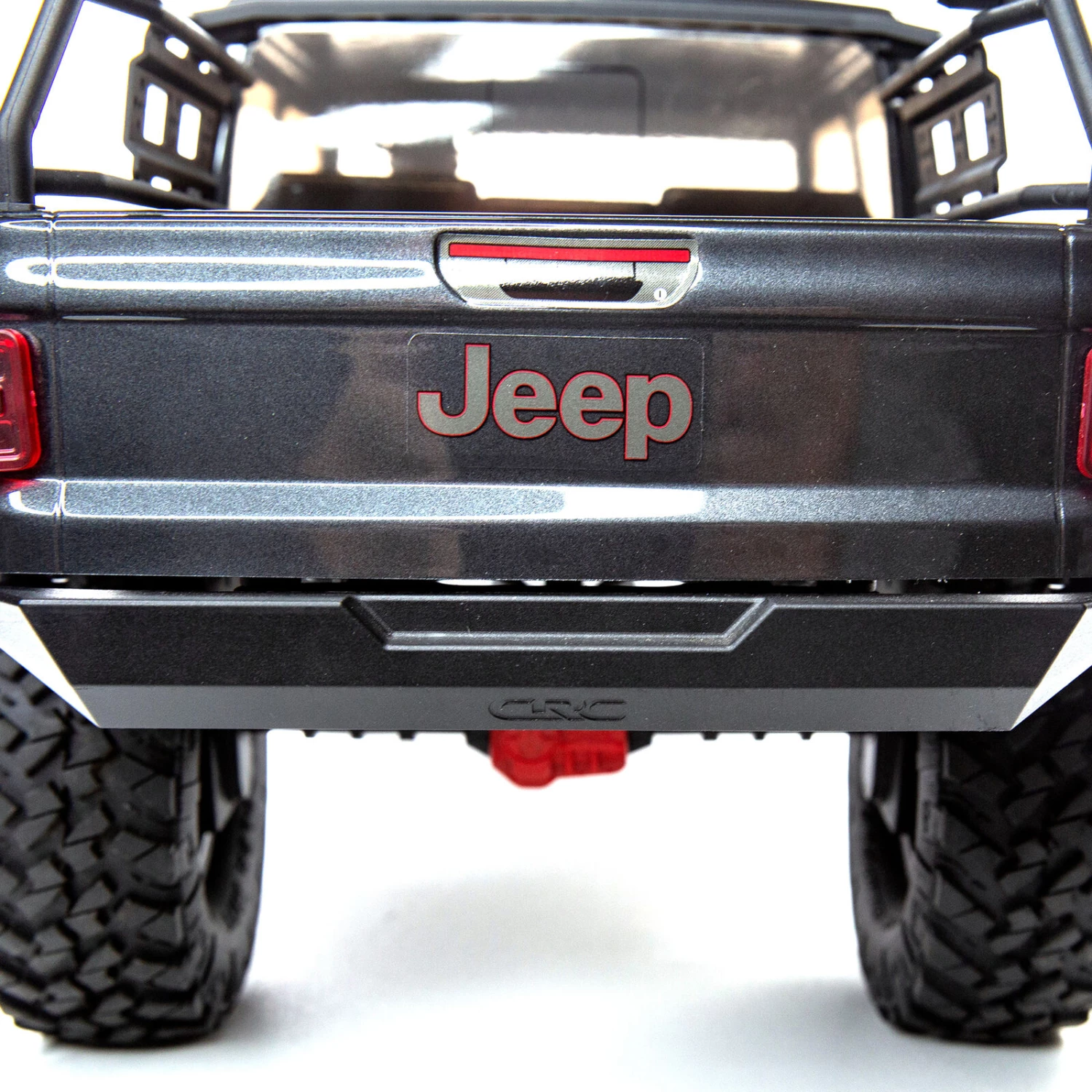

- Three-piece body provides a more realistic deep bed.
- Spektrum™ DX3™ DSMR® radio is fully compatible with the Smart telemetry potential of the installed Firma™ Smart 40A ESC/receiver.
- Ready to Run completion level comes with everything needed to operate besides a battery and compatible charger
In The Box
- (1) Axial® SCX10™ III Jeep® JT Gladiator 4WD

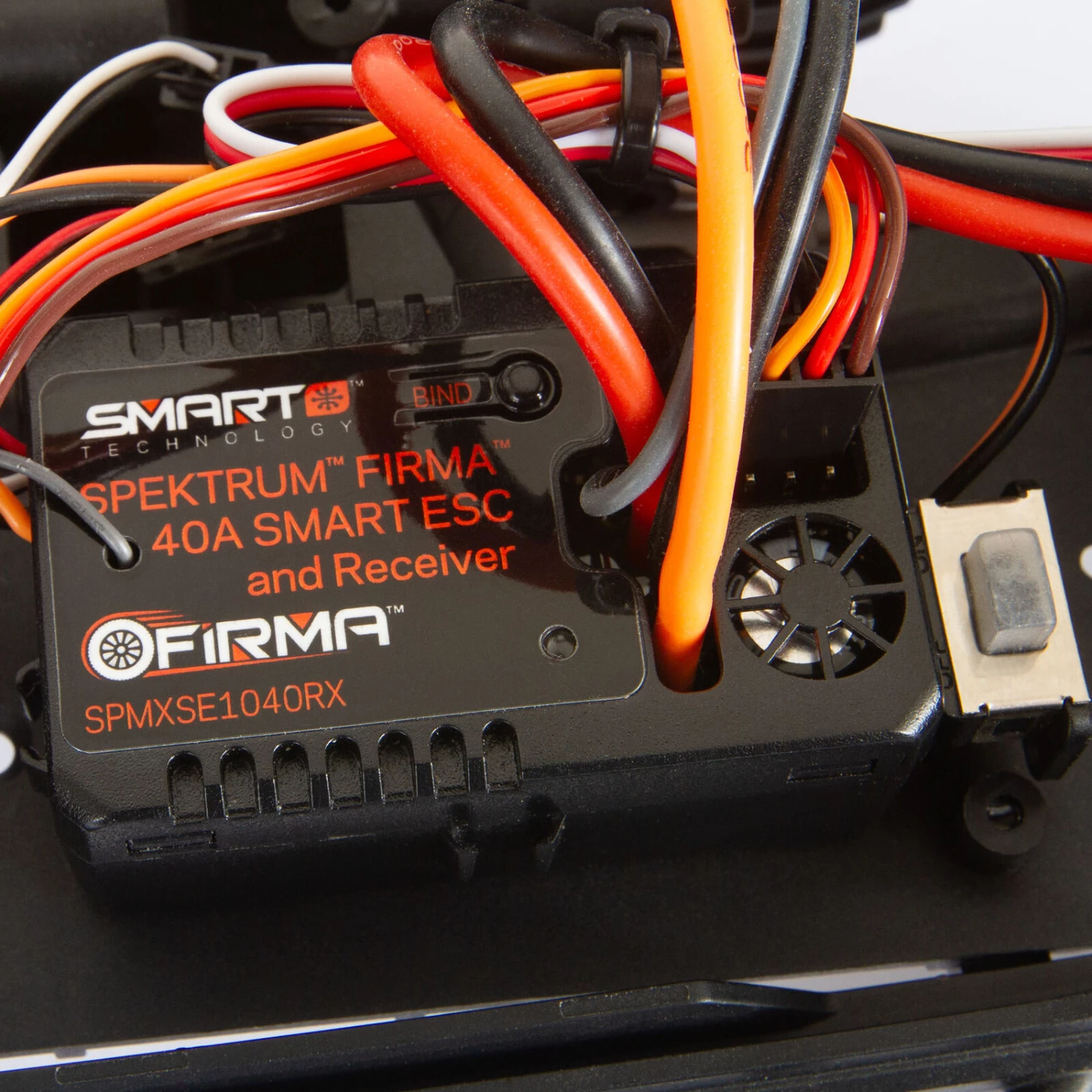

- (1) Spektrum Firmaâ„¢ Smart 40A ESC/Receiver (installed)

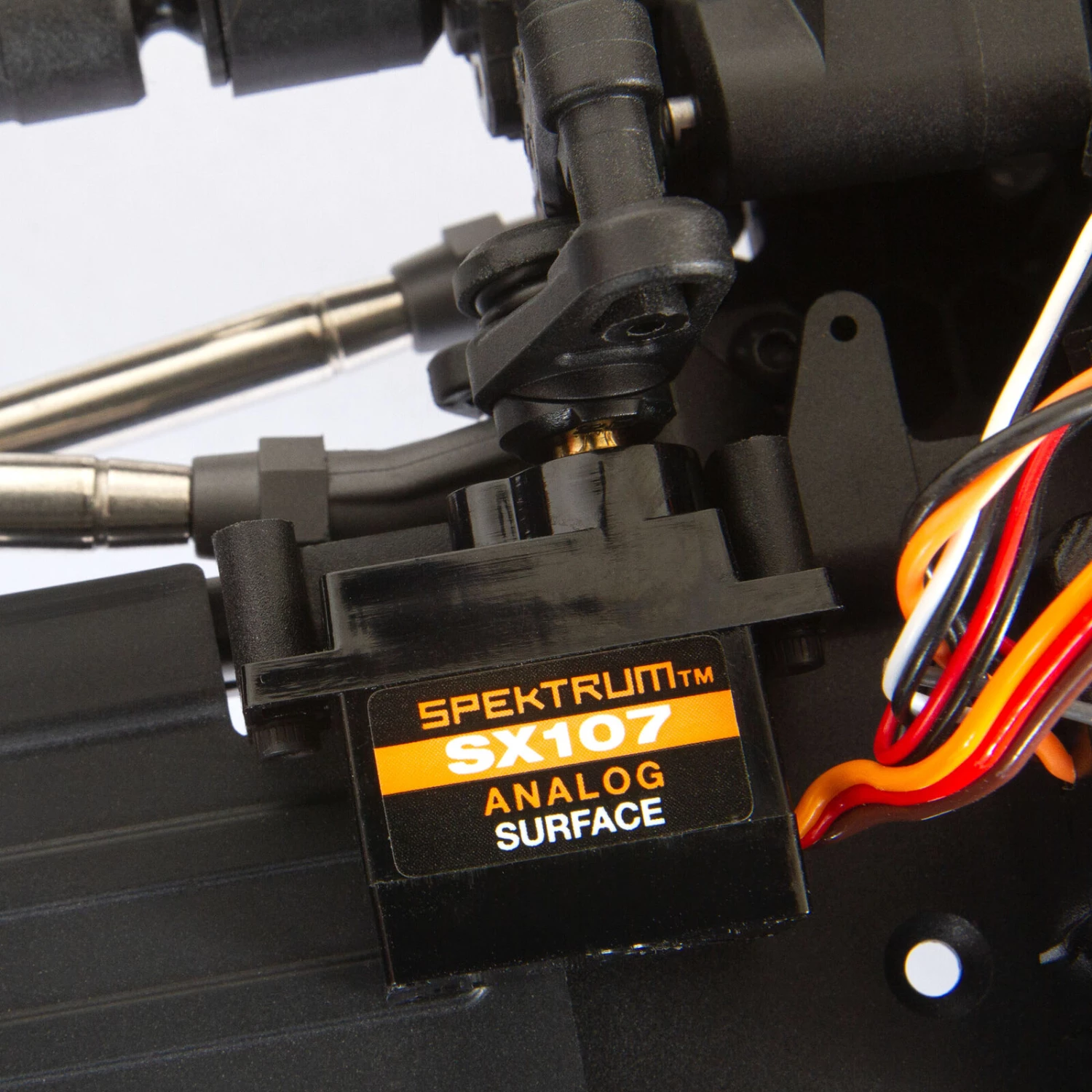

- (1) Spektrum 15kg Servo (installed)
- (1) Spektrum™ DX3™ DSMR® Radio
- (1) Product Manual
Needed to Complete
- Vehicle Battery (accepts standard and shorty packs)
- Compatible charger
- LiPo Safety Container
Features
Product Specifications
| Spur Gear | 40T |

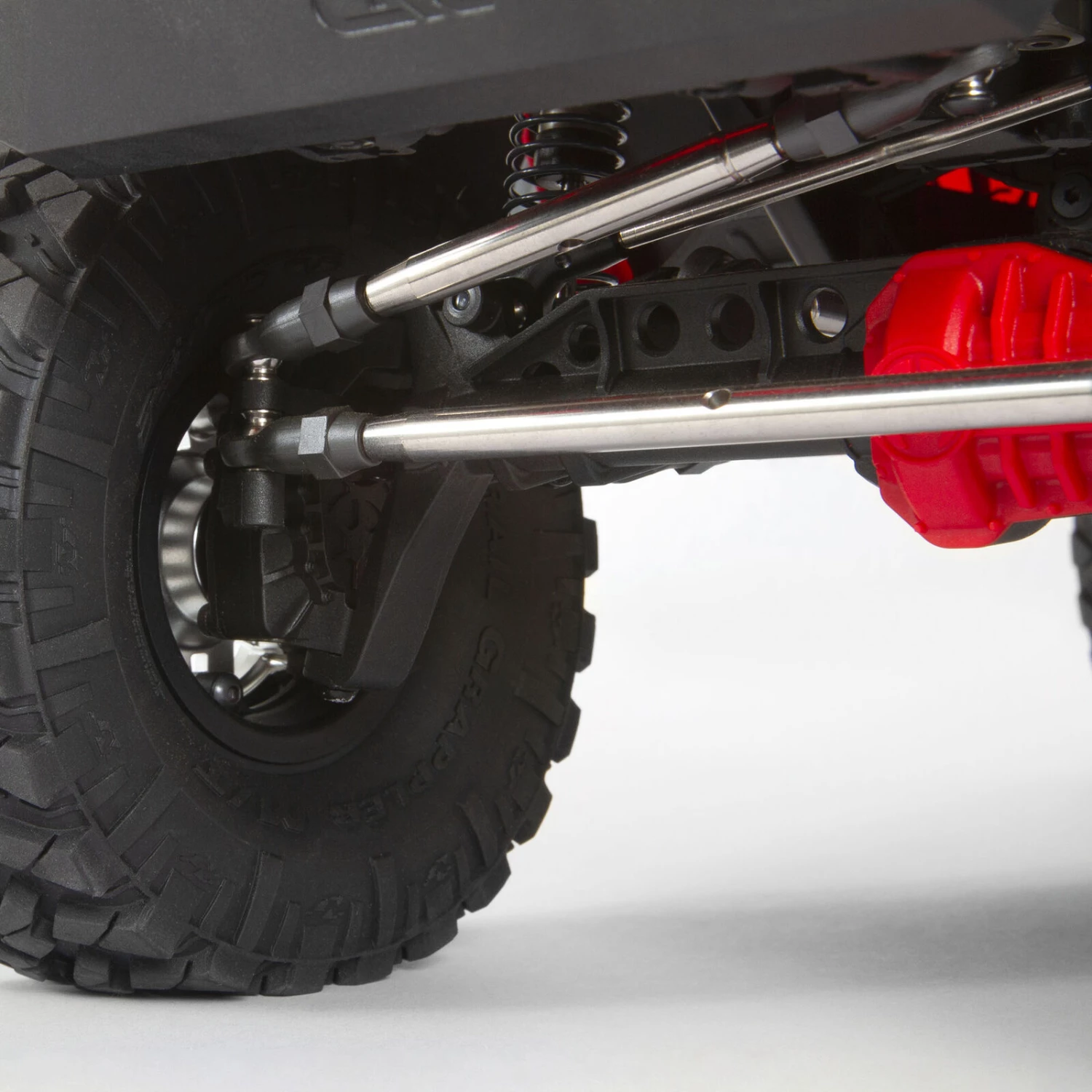

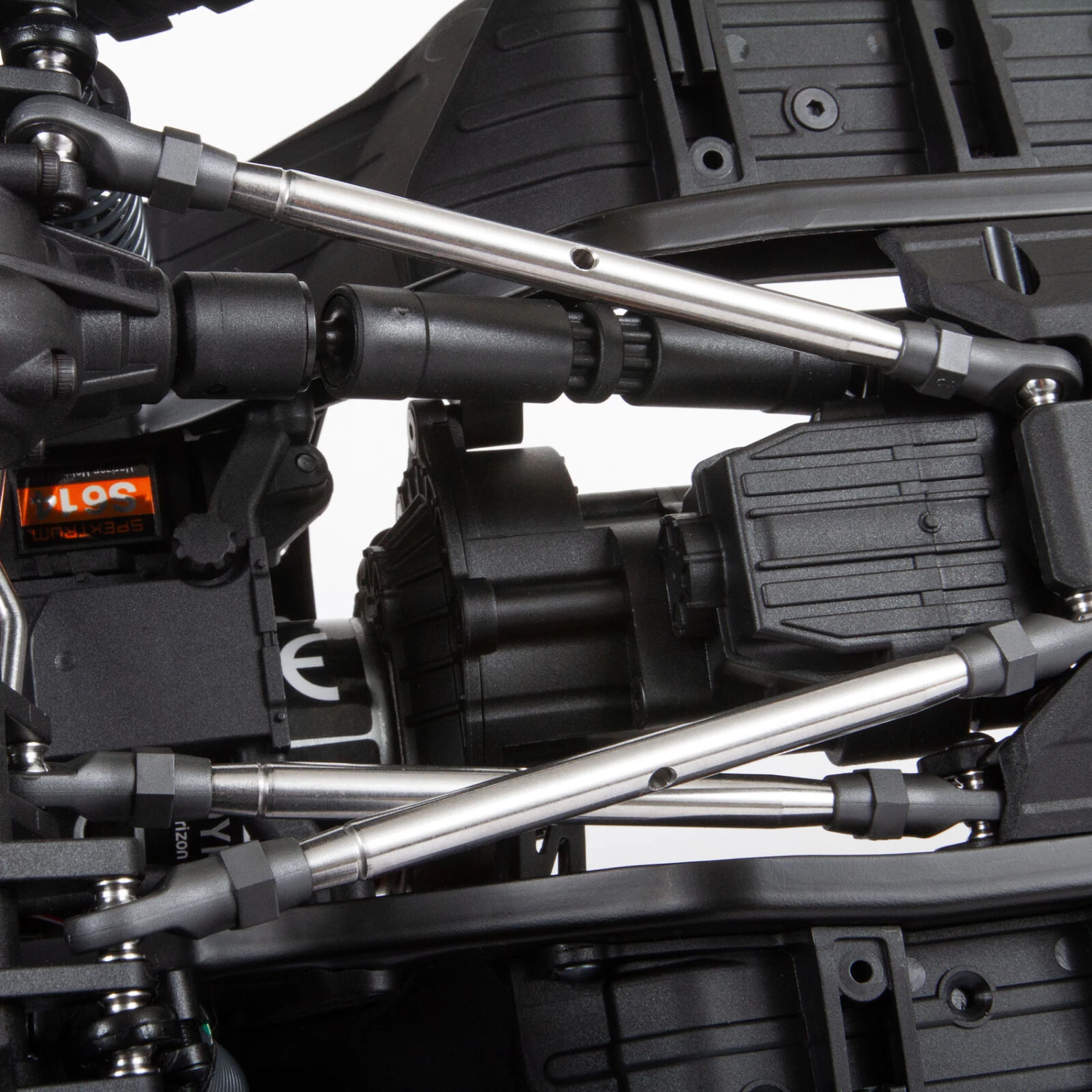

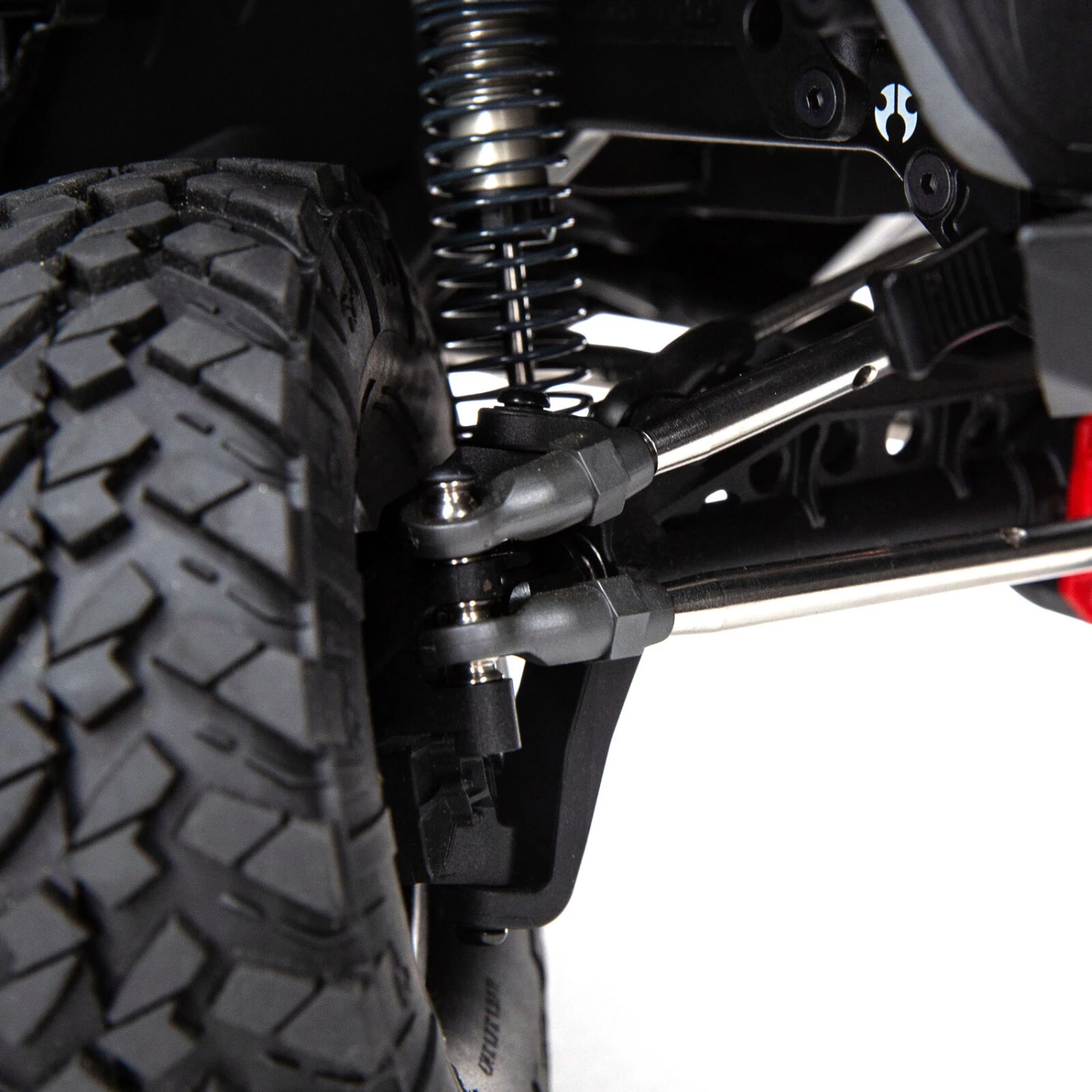

| Suspension | Multi-link solid axle with stainless steel pivot balls |
| Final Drive Ratio | 45.6:1 Low / 31.3:1 High |
| Motor Type | Brushed |
| Rear Track | 8.9 in (226mm) |
| Speed Control | Included |
| Wheelbase | 13.9″ (353 mm) |
| Product Weight | 7lbs (3175g) |
| Vehicle Type | Rock Crawler |
| Water-Resistant | Yes |
| Ball Bearings | Full set |

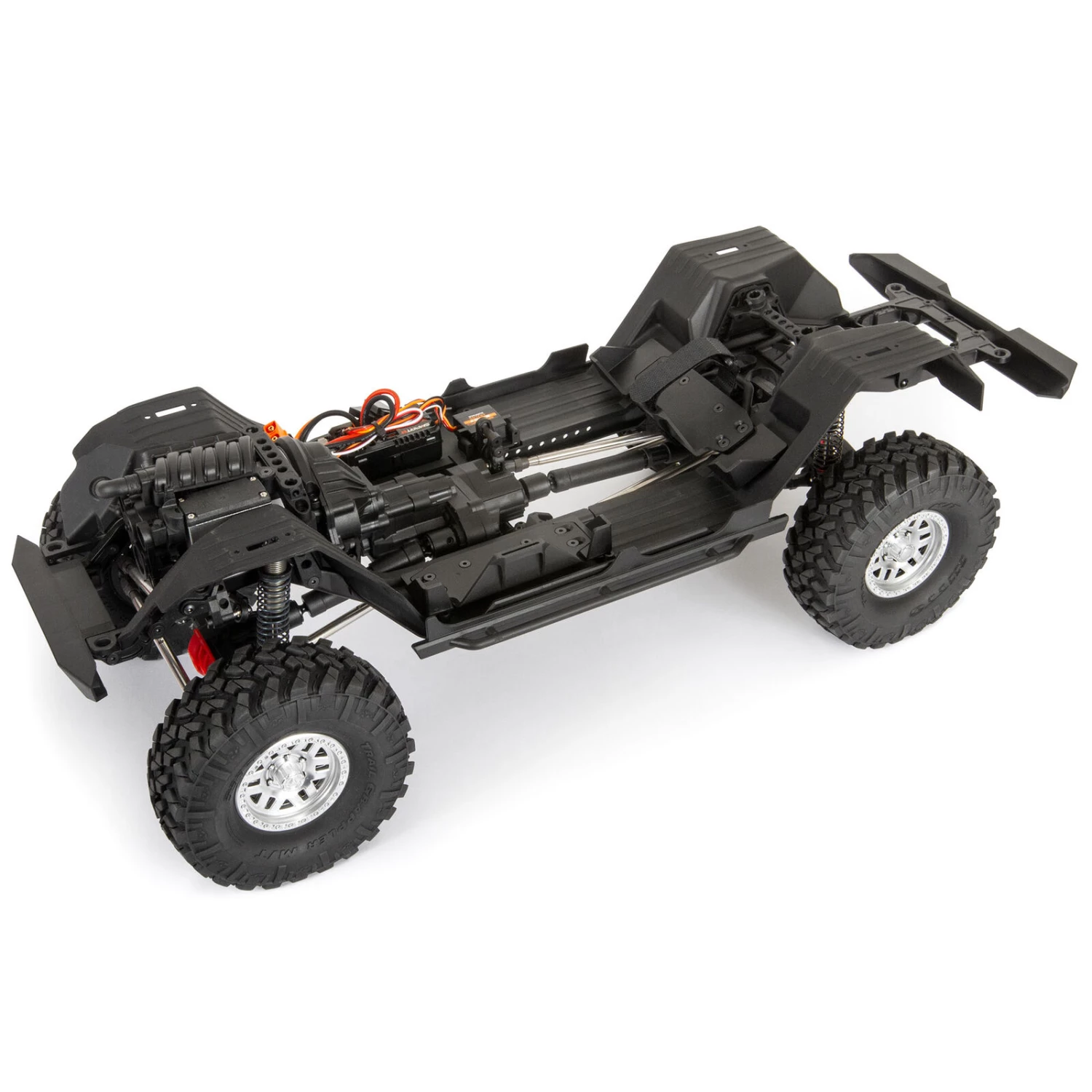

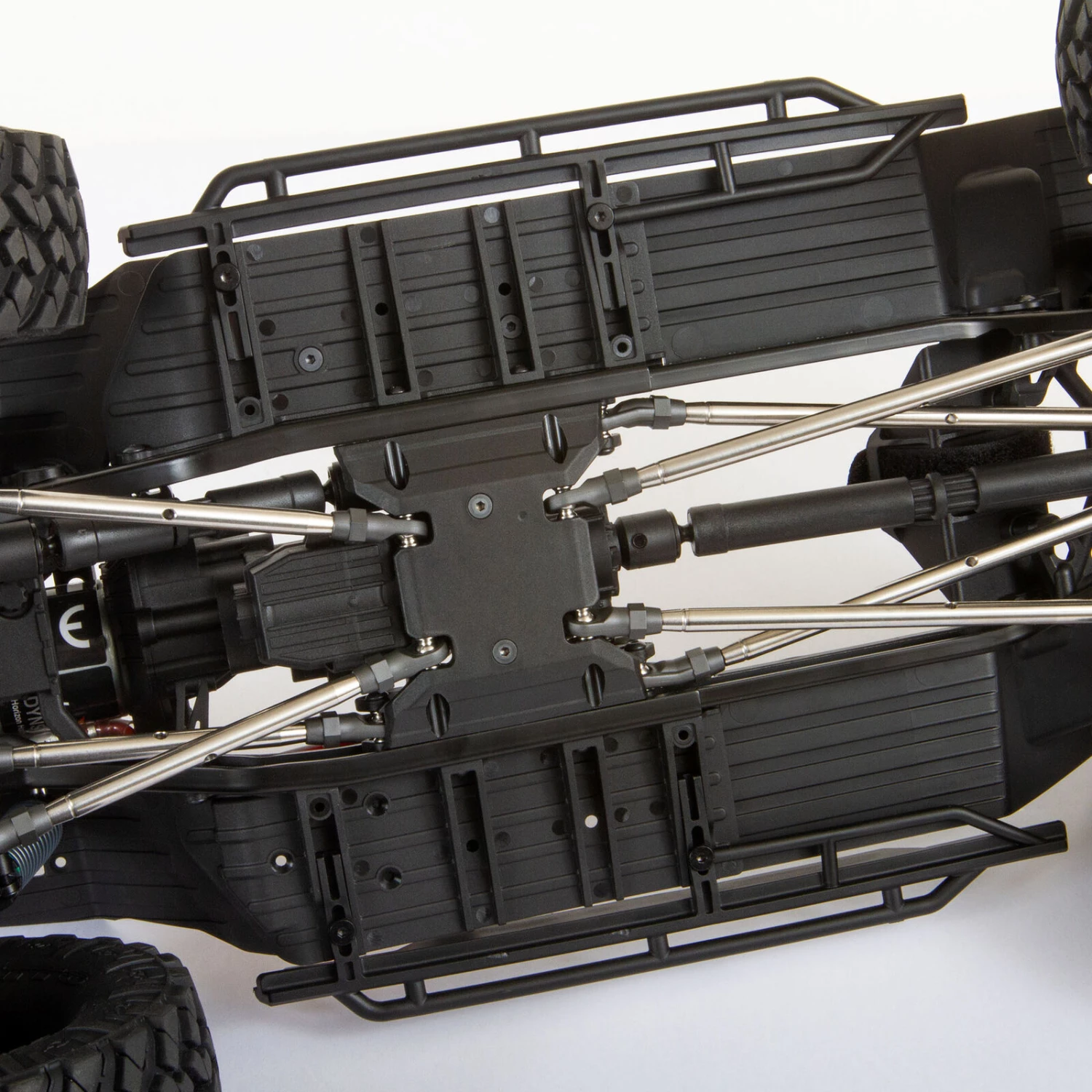

| Chassis | Adjustable steel C-channel |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Product Height | 9.5″ (241 mm) |
| Power Type | Electric |
| Gear Pitch | 32-Pitch |
| Approximate Assembly Time | No assembly required |
| Body | 3-piece, highly detailed Lexan |
| Brakes | Integral with ESC |
| Pinion | 14T |
| Scale | 1/10 |
| Product Length | 22.25″ (565 mm) |
| Ground Clearance | 3 in (76.2mm) |
| Battery | Sold Separately |
| Front Track | 8.9 in (226mm) |
| Product Width | 9.25″ (235 mm) |
| Radio | Included |
| Technology | Smart |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Differential | Locked |
| Max Battery Dimensions | 5.45 x 1.83 x 1.38″ (138.5 x 46.5 x 35mm) |
| Receiver | Included |

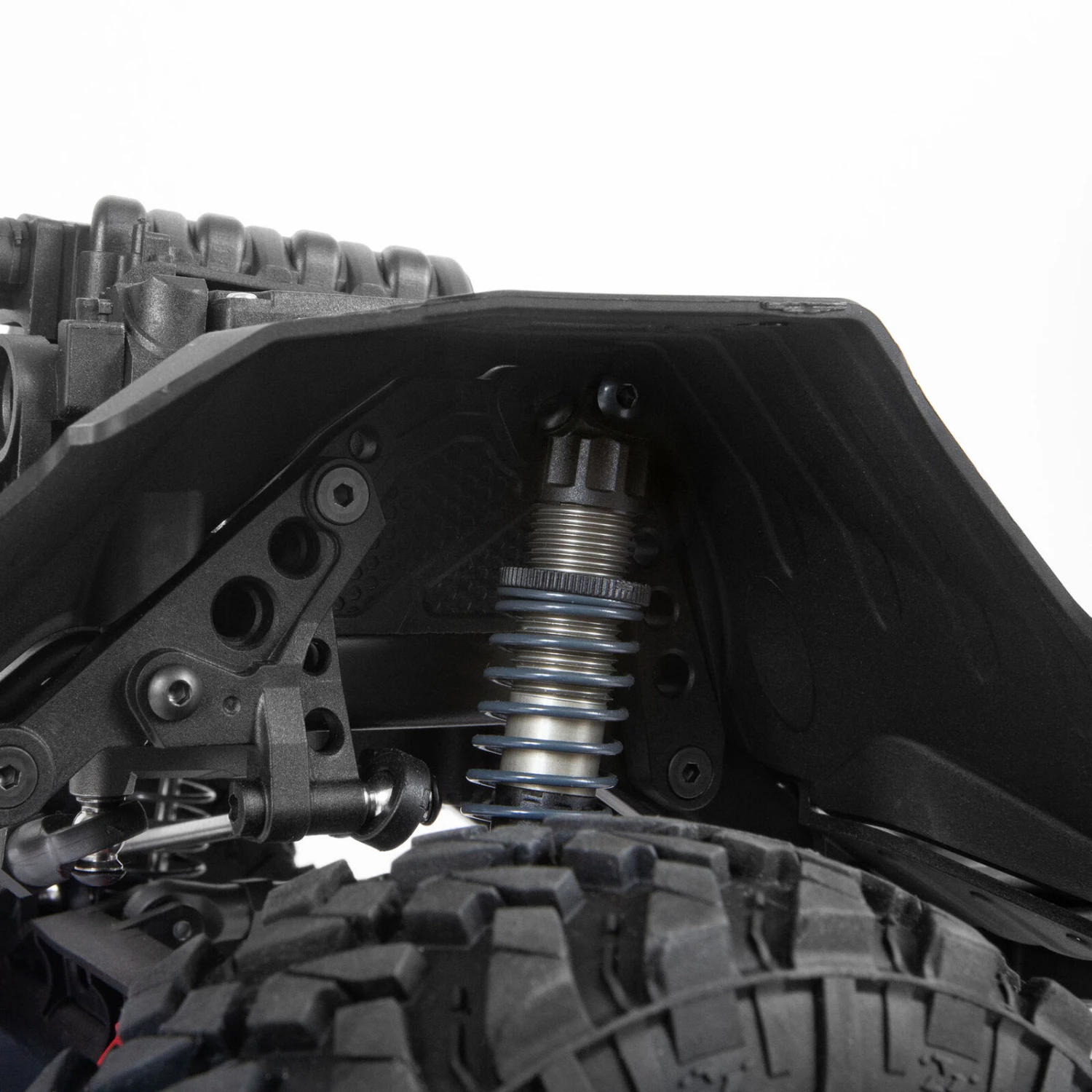

| Shock Type | Oil-filled |
