Product Details
In The Box

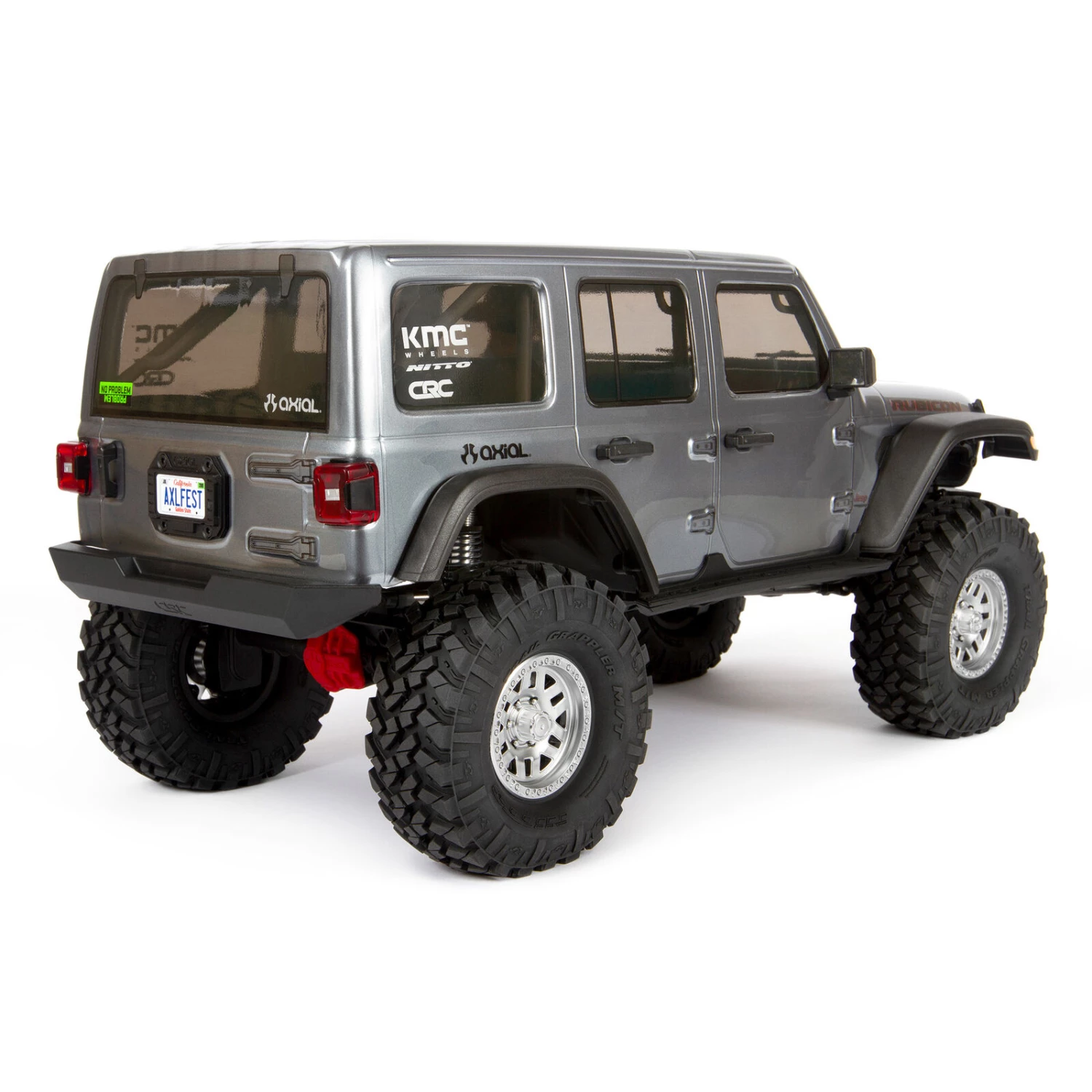

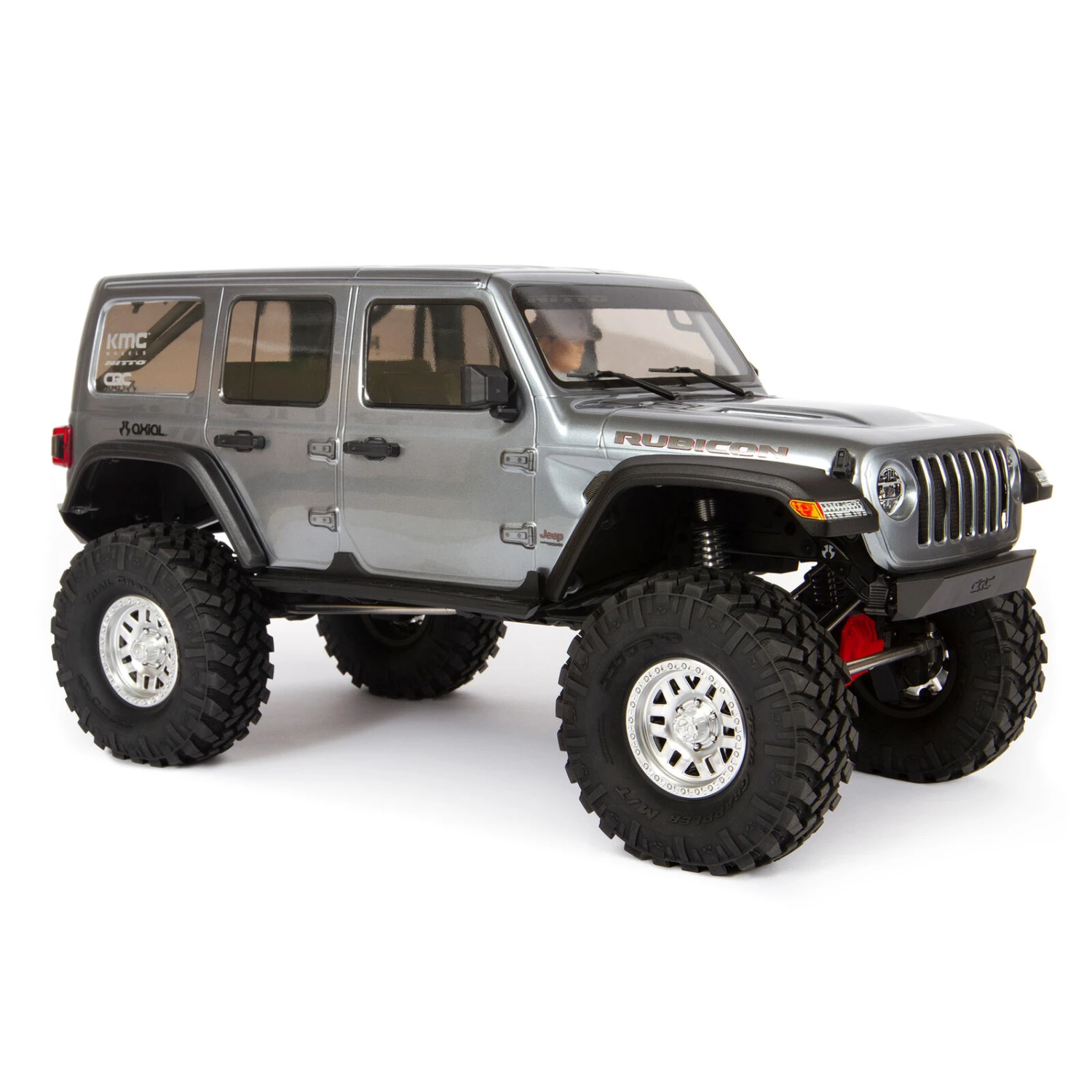

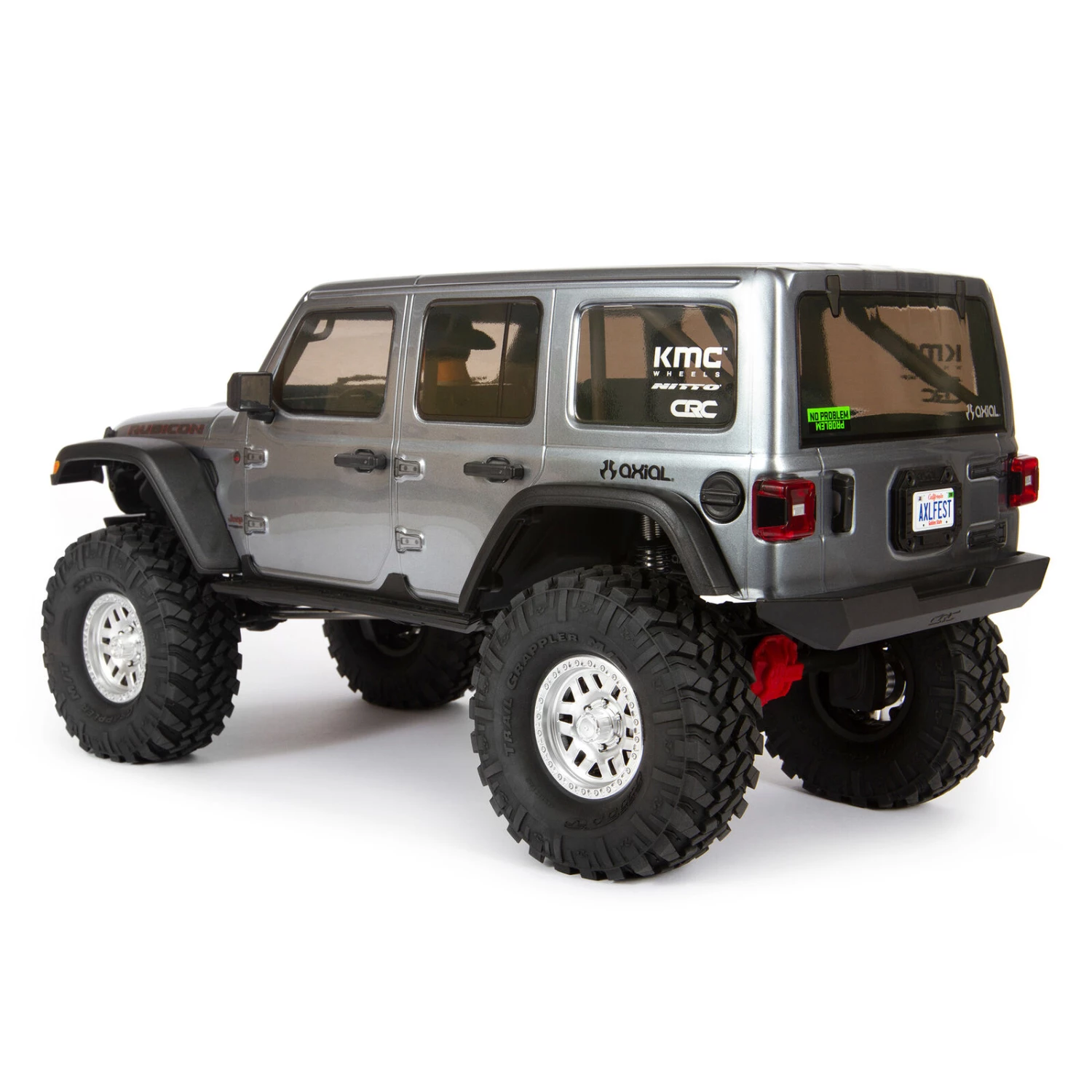

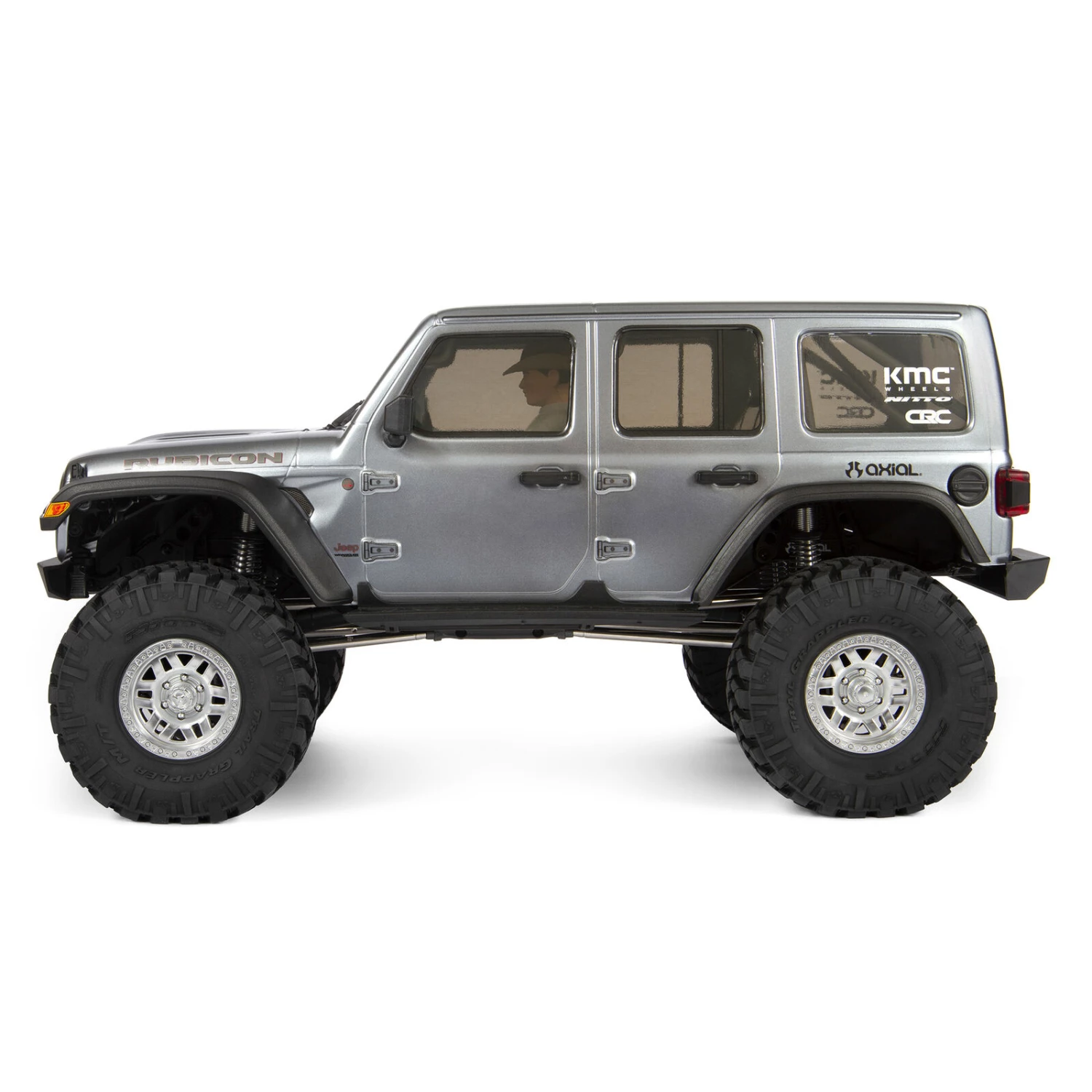

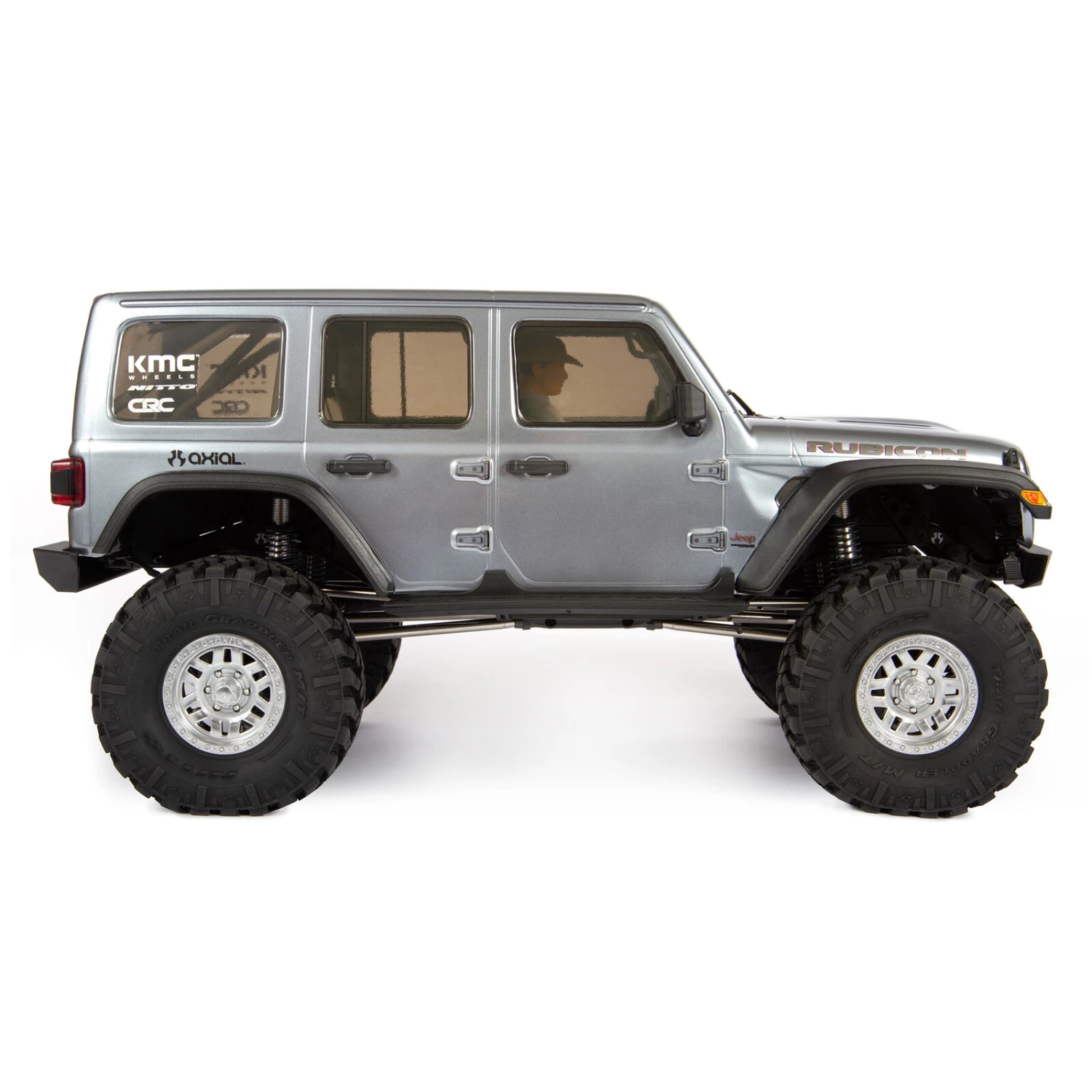

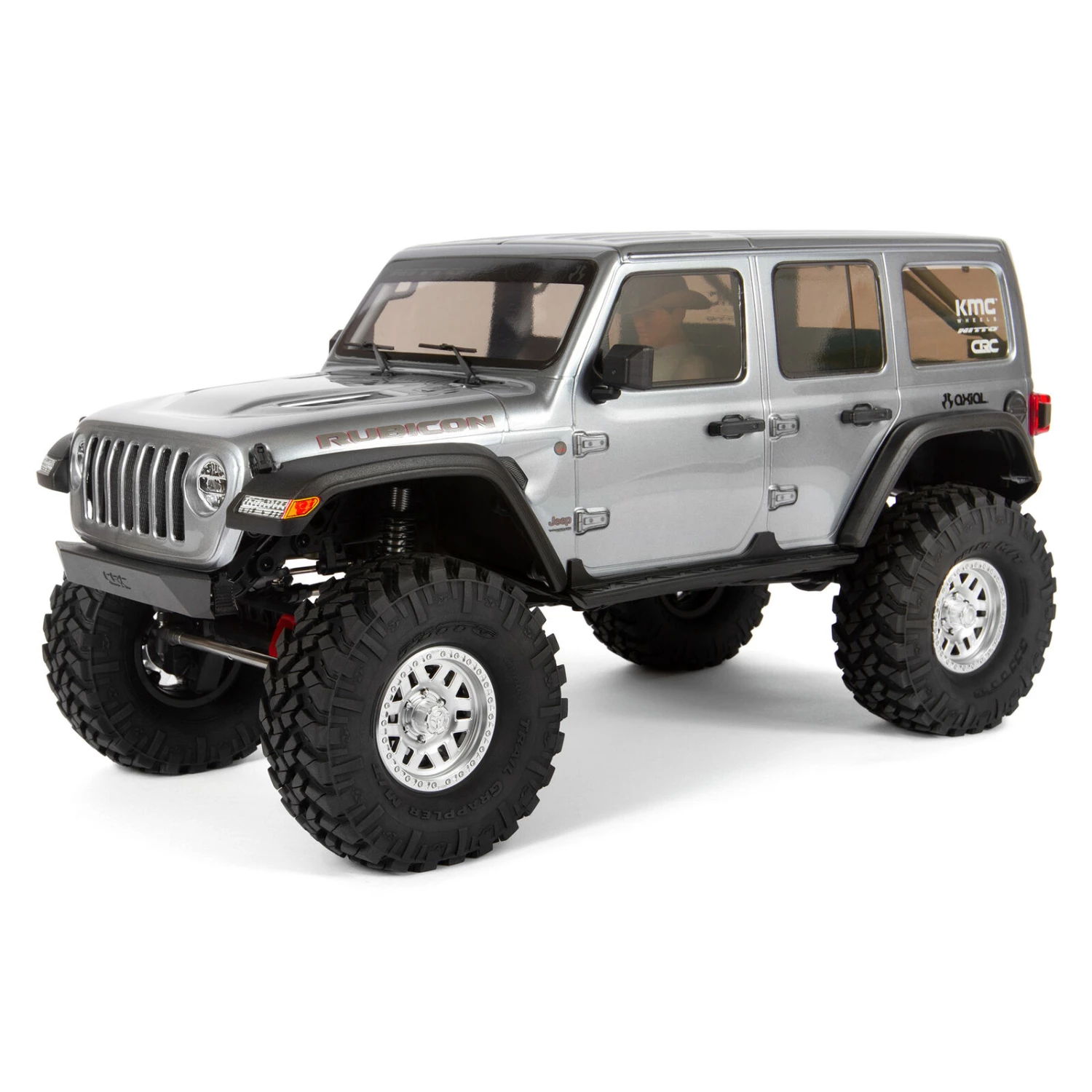

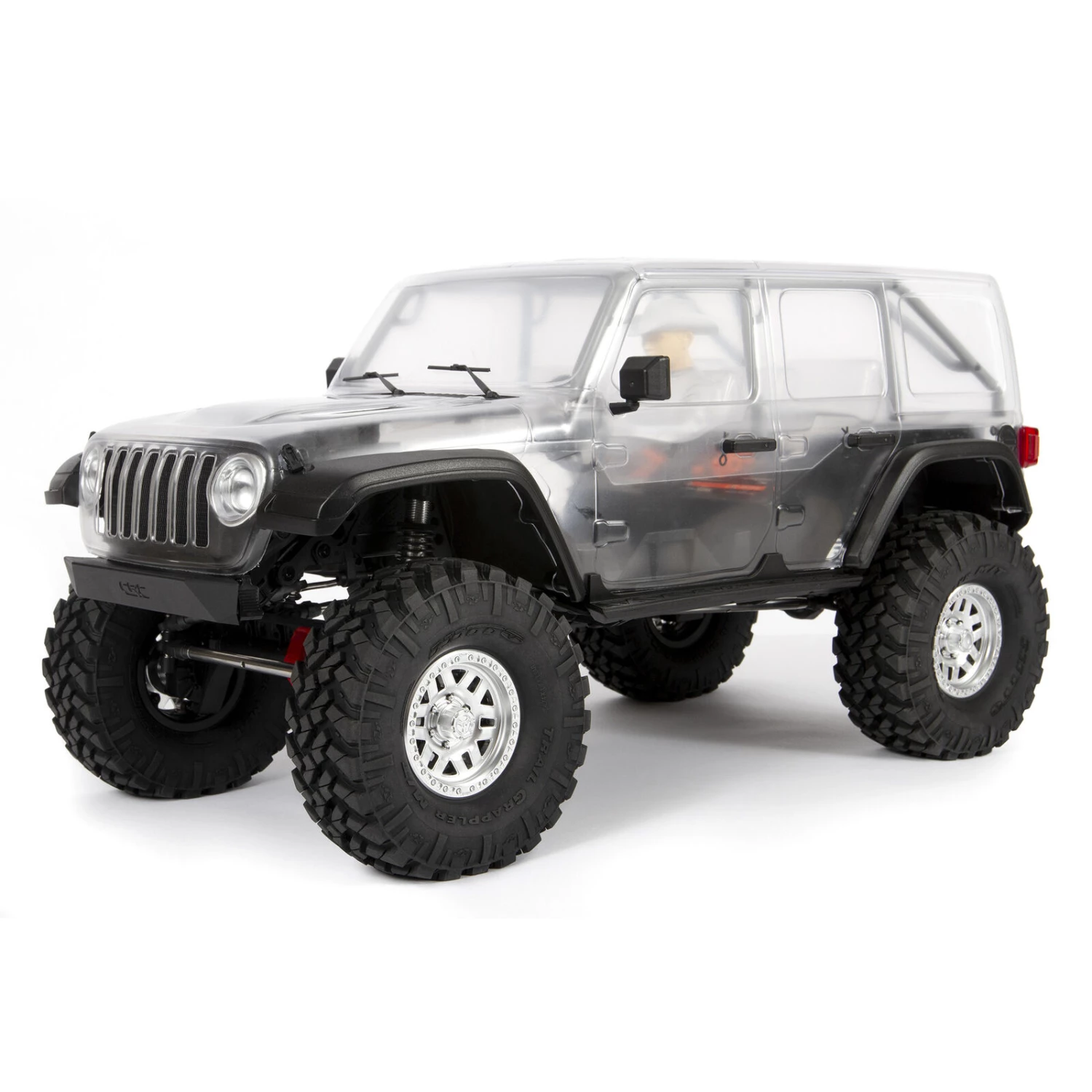

- (1) Axial® SCX10™ III Jeep® JLU Wrangler 4WD Kit with clear body
- (1) Product Manual

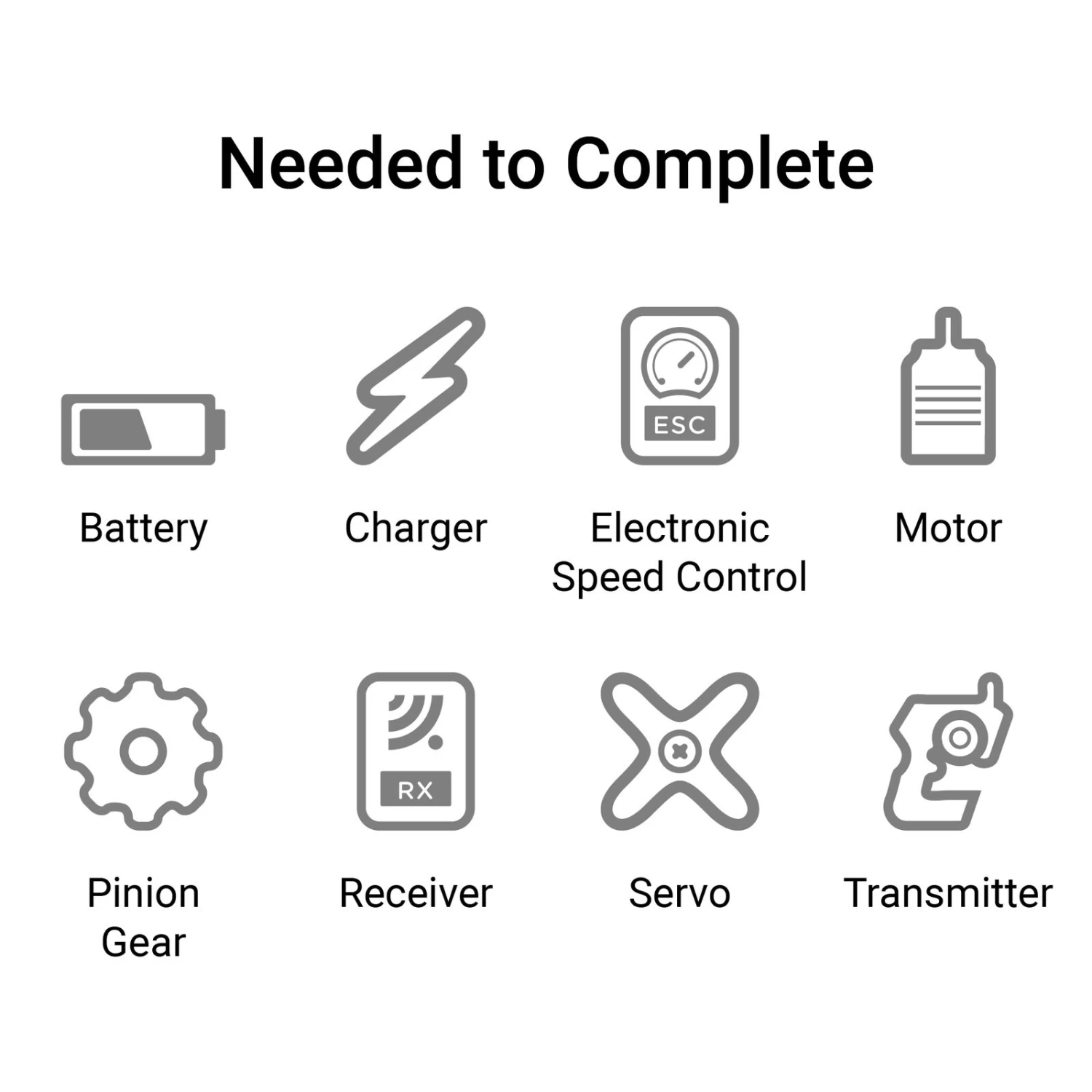

Needed to Complete
- (1) 2+ Channel Transmitter with receiver
- (1) Metal Gear, Hi-Torque Steering Servo
- (1) ESC and Motor
- (1) 14T Pinion Gear
- (1) Battery
- (1) Compatible Battery Charger
- (1) Micro Servo (OPTIONAL, for Dig Function)
- (2) Micro Servo (OPTIONAL, for Dig and 2 Speed Function)
- (1) Paint
Features
Product Specifications
| Product Width | 9.25″ (235 mm) |
| Radio | Sold Separately |
| Product Weight | 6.5 lbs (2.9kg) |

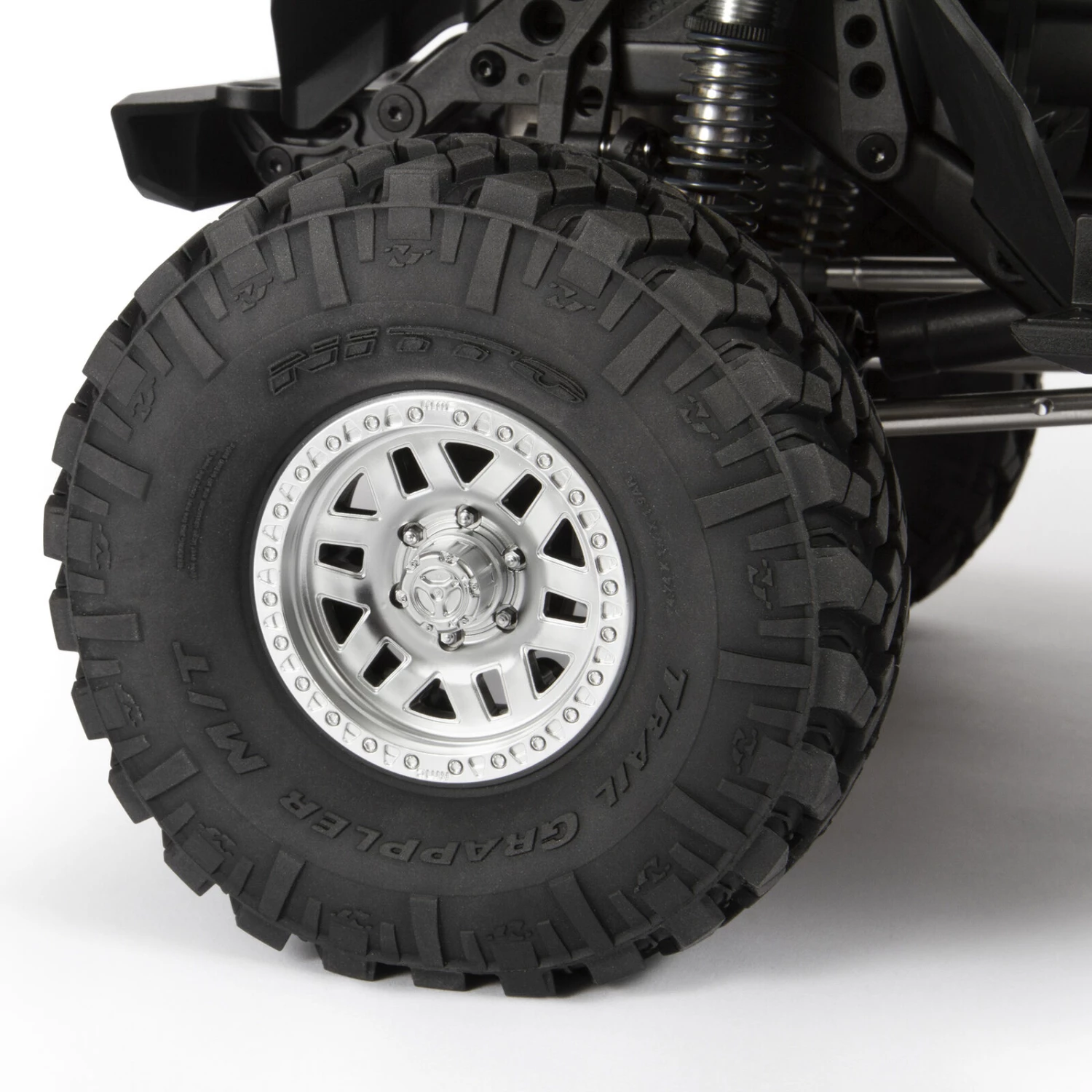

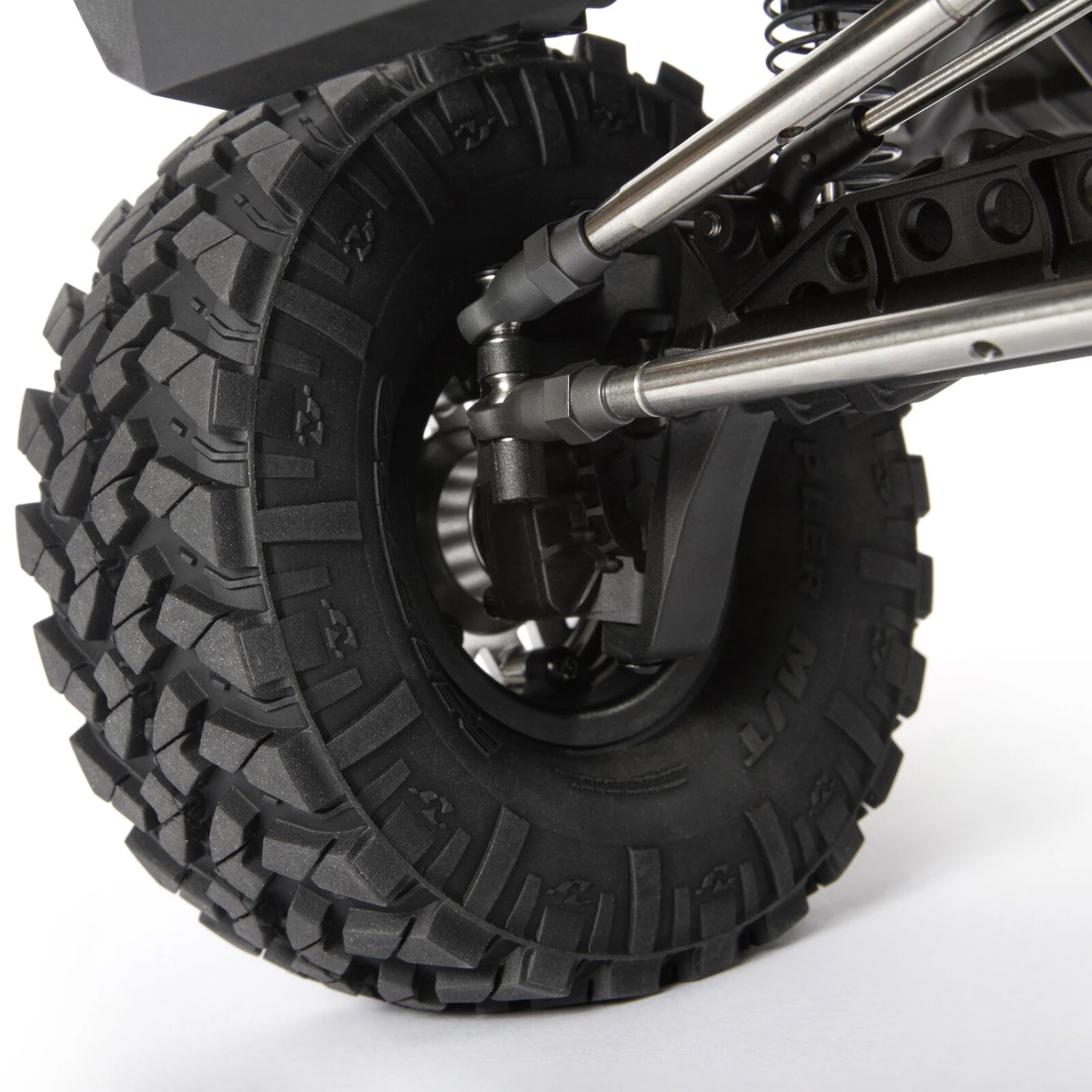

| Tire Tread | Nitto Trail Grappler M/T |
| Vehicle Type | Rock Crawler |
| Water-Resistant | Yes |
| Approximate Assembly Time | 7-10 Hours |

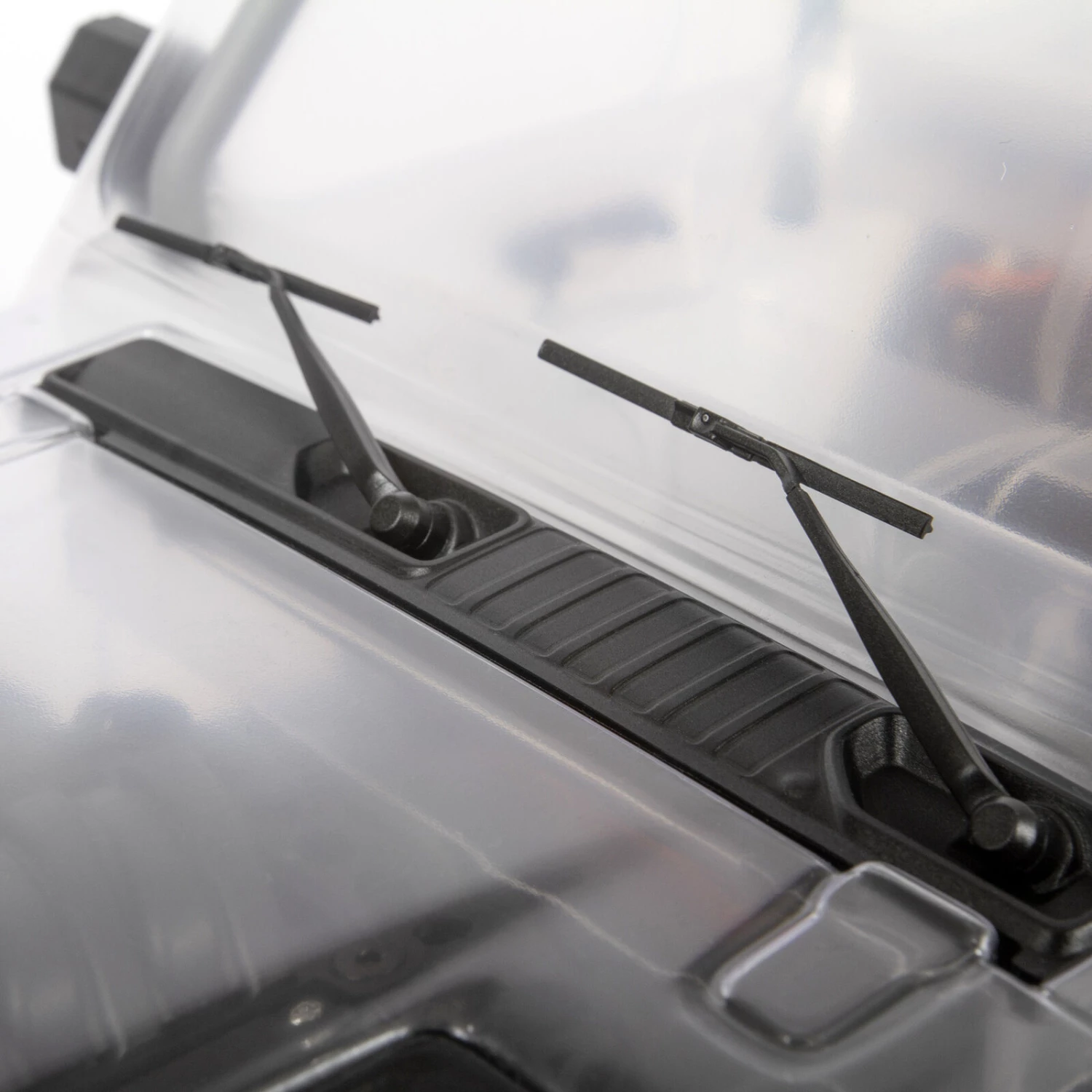

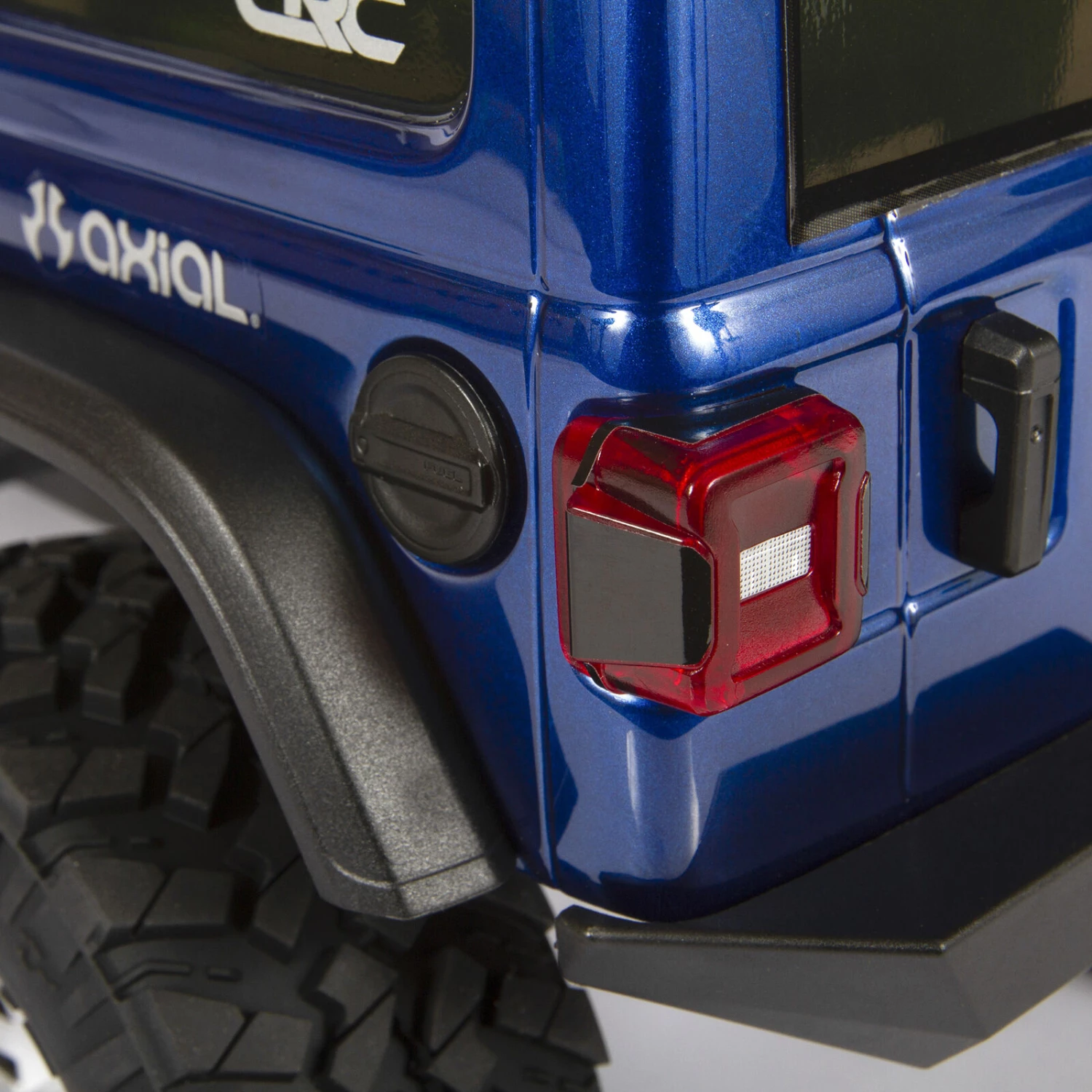

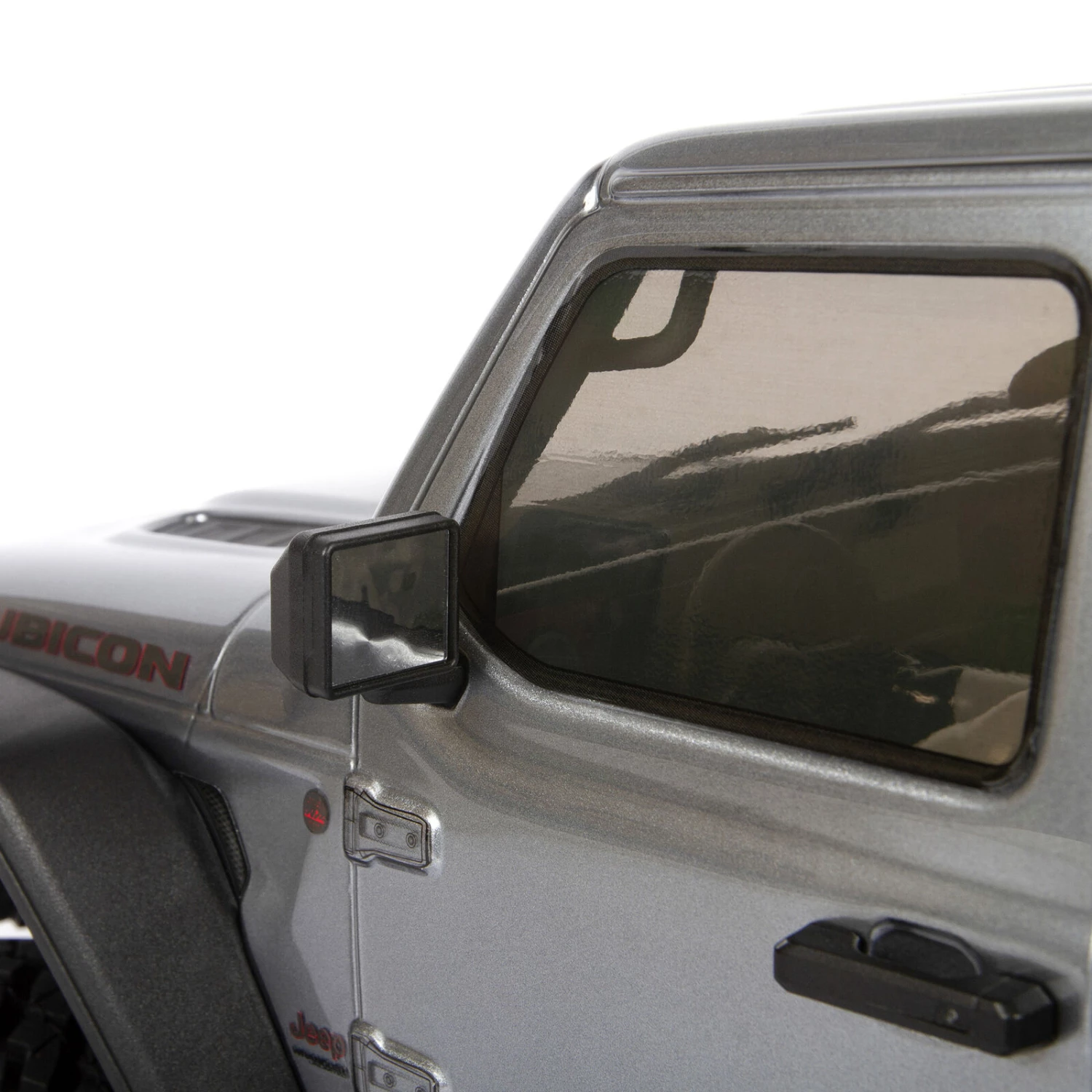

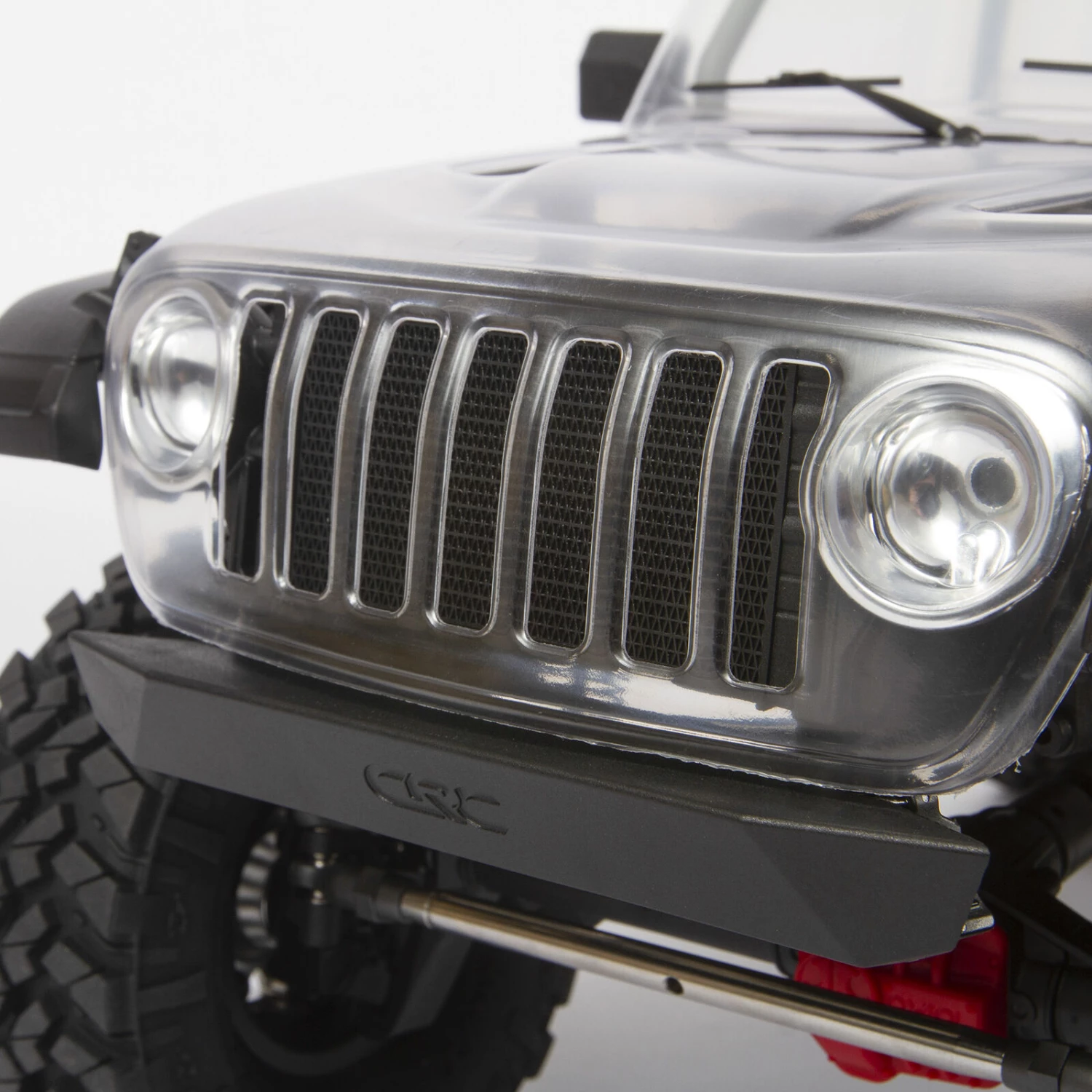

| Body | Clear polycarbonate Jeep Wrangler Unlimited with detailed interior |
| Brakes | Integral with ESC |
| Pinion | 14T |
| Scale | 1/10 |
| Ball Bearings | Complete set |

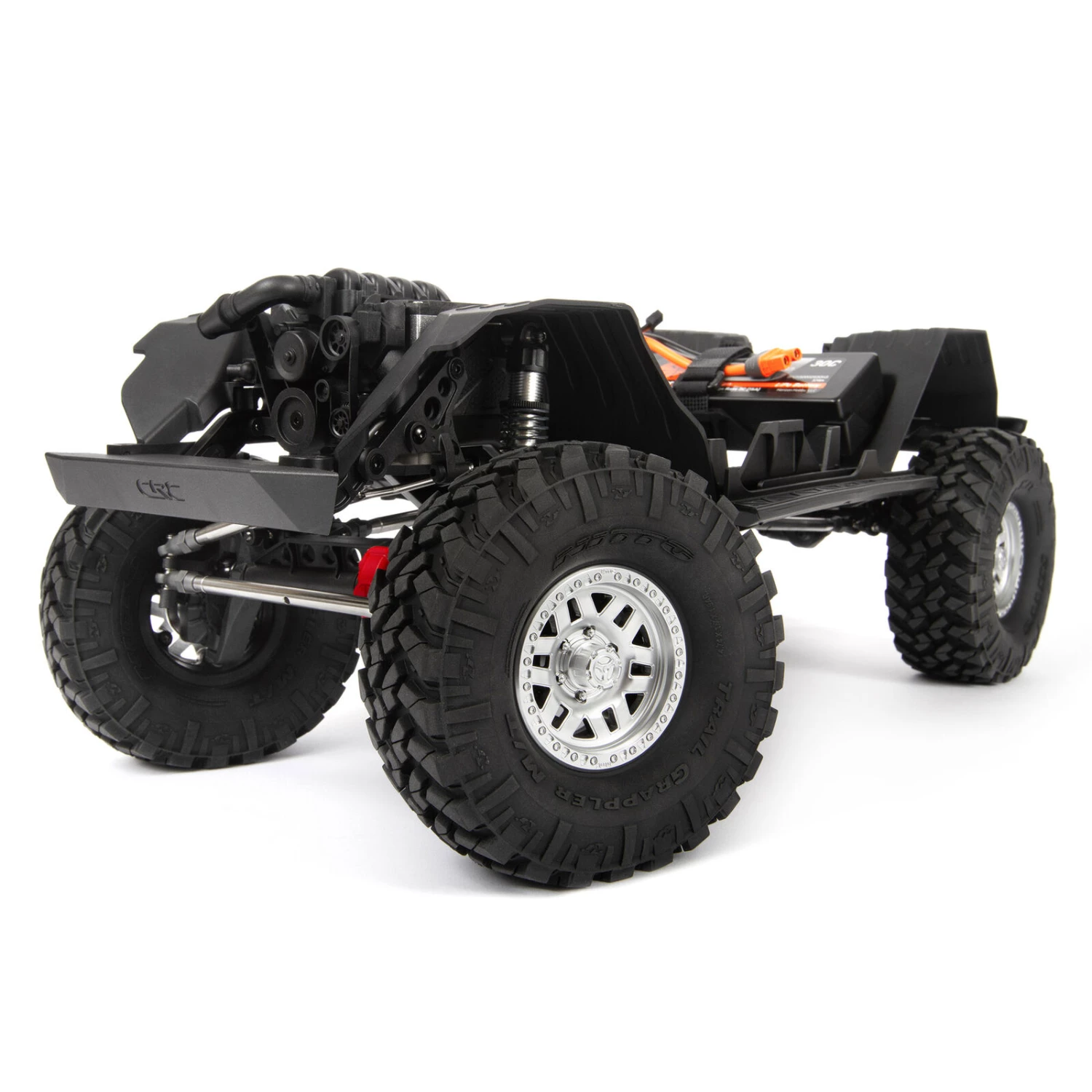

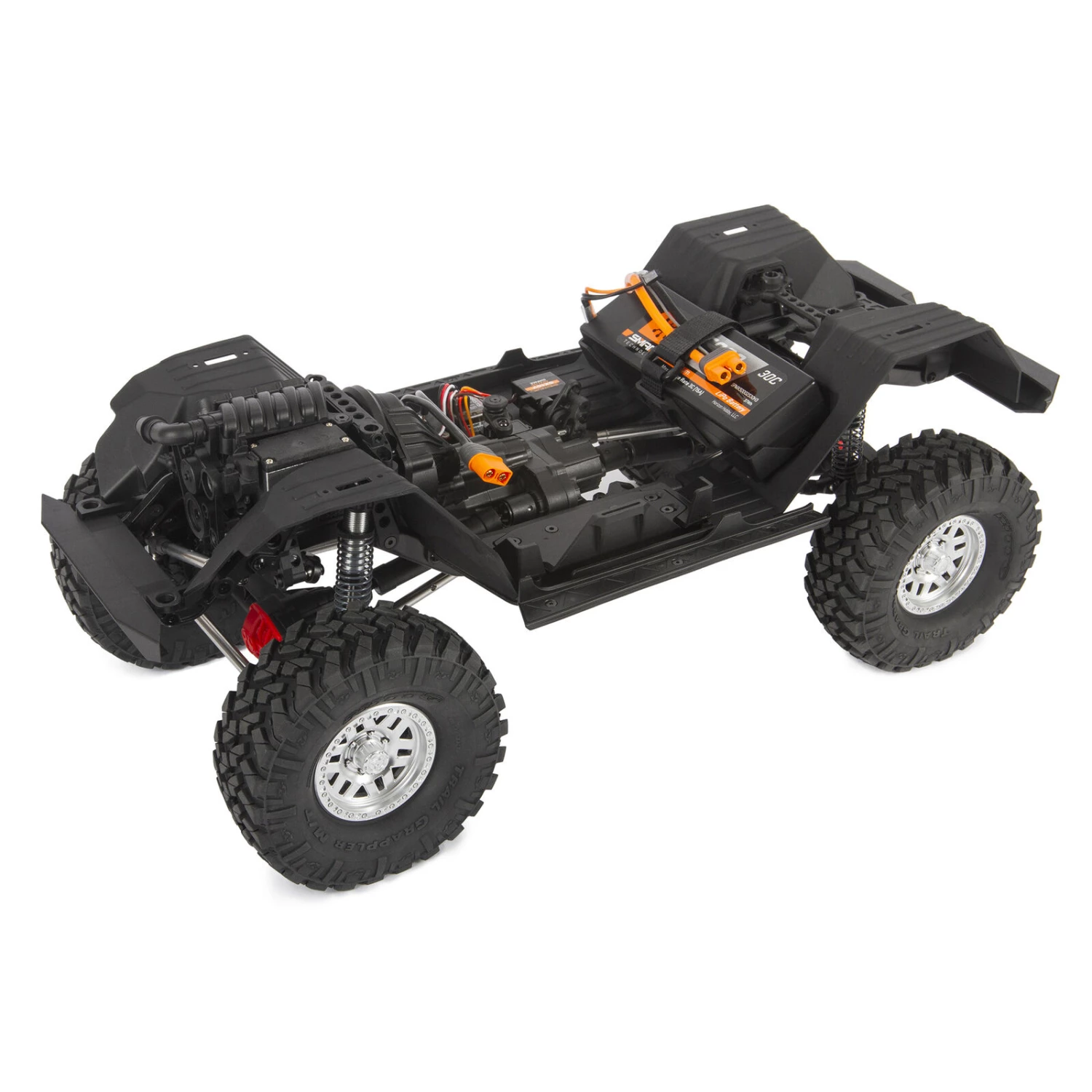

| Chassis | Adjustable steel C-channel |
| Completion Level | Kit |
| Drivetrain | 4WD |
| Product Height | 9.5″ (241 mm) |
| Tire Compound | R30 |
| Wheel Hex Size | 12mm |
| Battery | Sold Separately |
| Ground Clearance | 3 in (76.2mm) |
| Motor Size | 540 (sold separately) |
| Wheelbase | 12.3″ (312 mm) |
| Bushing Material | Metal |
| Shock Type | Oil-filled coil over spring |
| Max Battery Dimensions | 5.47 x 1.85 x 0.98 in (139 x 47 x 25mm) |
| Receiver | Sold Separately |
| Charger | Sold Separately |
| Differential | Locked |
| Product Length | 19.125″ (486 mm) |
| Spur Gear | 40T |

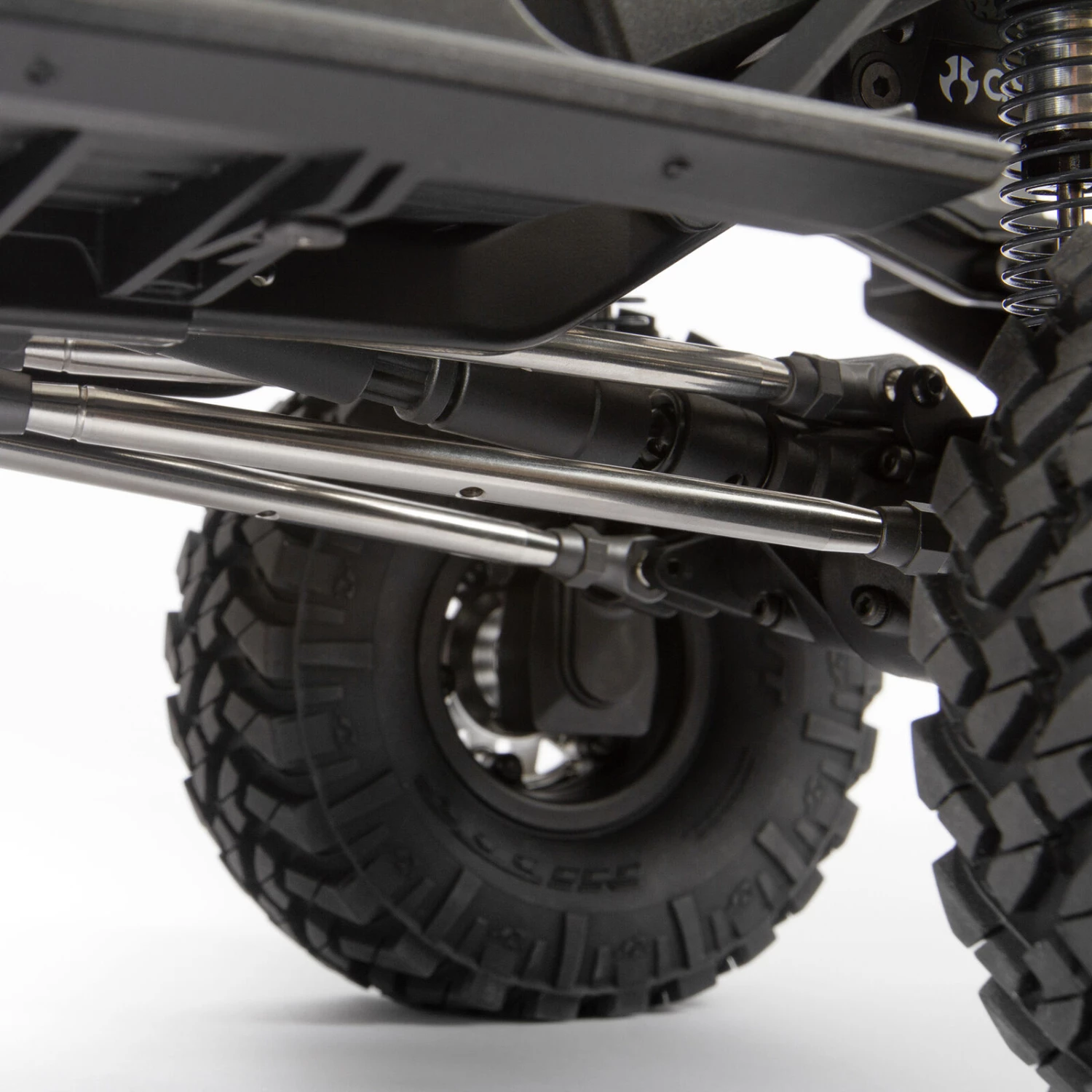

| Suspension | Multi-link solid axle |
| Steering Type | 2WS |
| Final Drive Ratio | 45.6:1 |
| Speed Control | Sold Separately |
| Wheel Width | 1 in (25.5mm) |
| Gear Pitch | 32-Pitch |
| Servos | Sold Separately |
| Power Type | Electric |
