Product Details

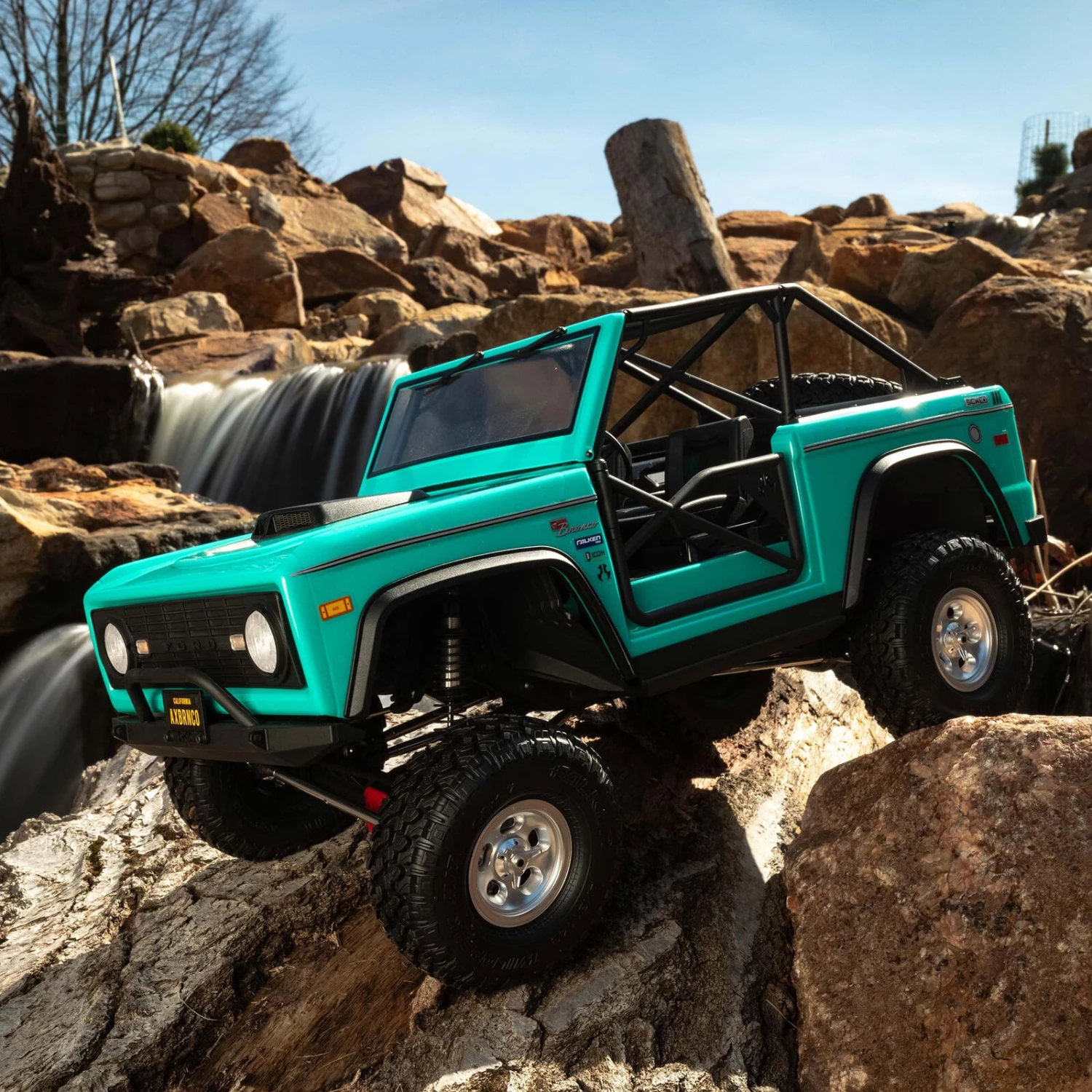

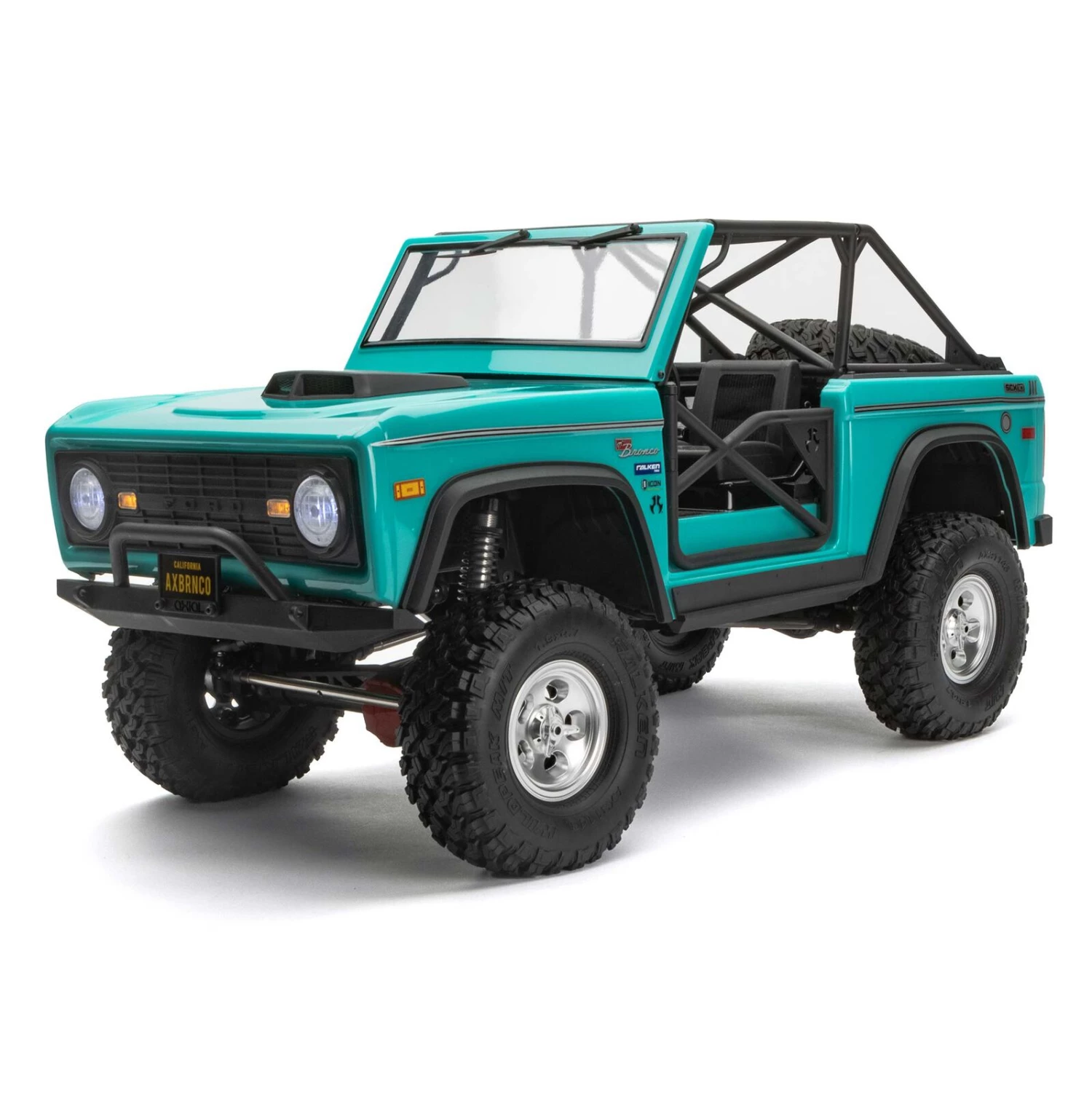

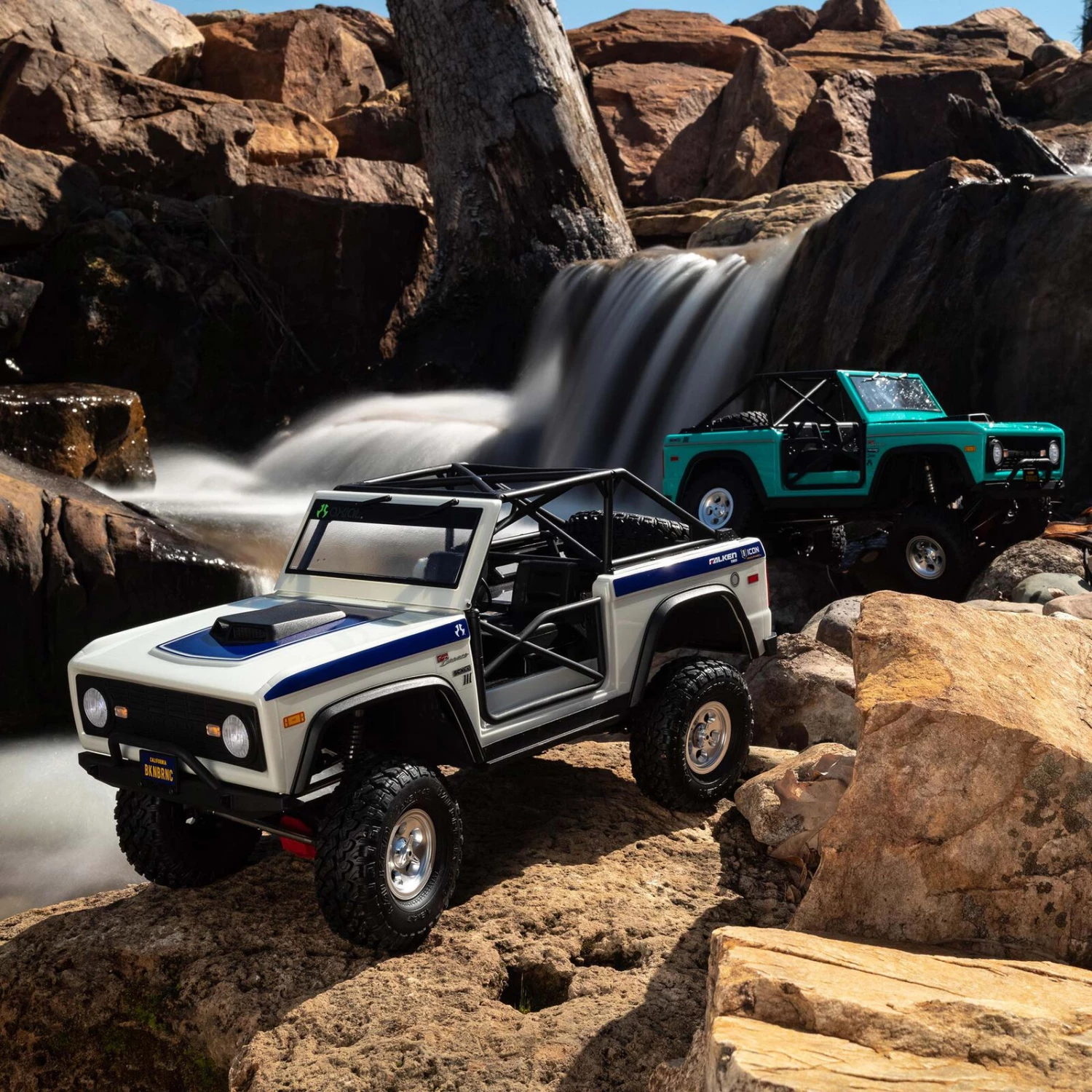

One of the most detailed Axial® scale models ever, the officially licensed Early Ford Bronco brings new features to the SCX10™ III platform — creating the ideal RTR for new scalers, longtime rock crawling enthusiasts, and Ford lovers everywhere.
Key Features

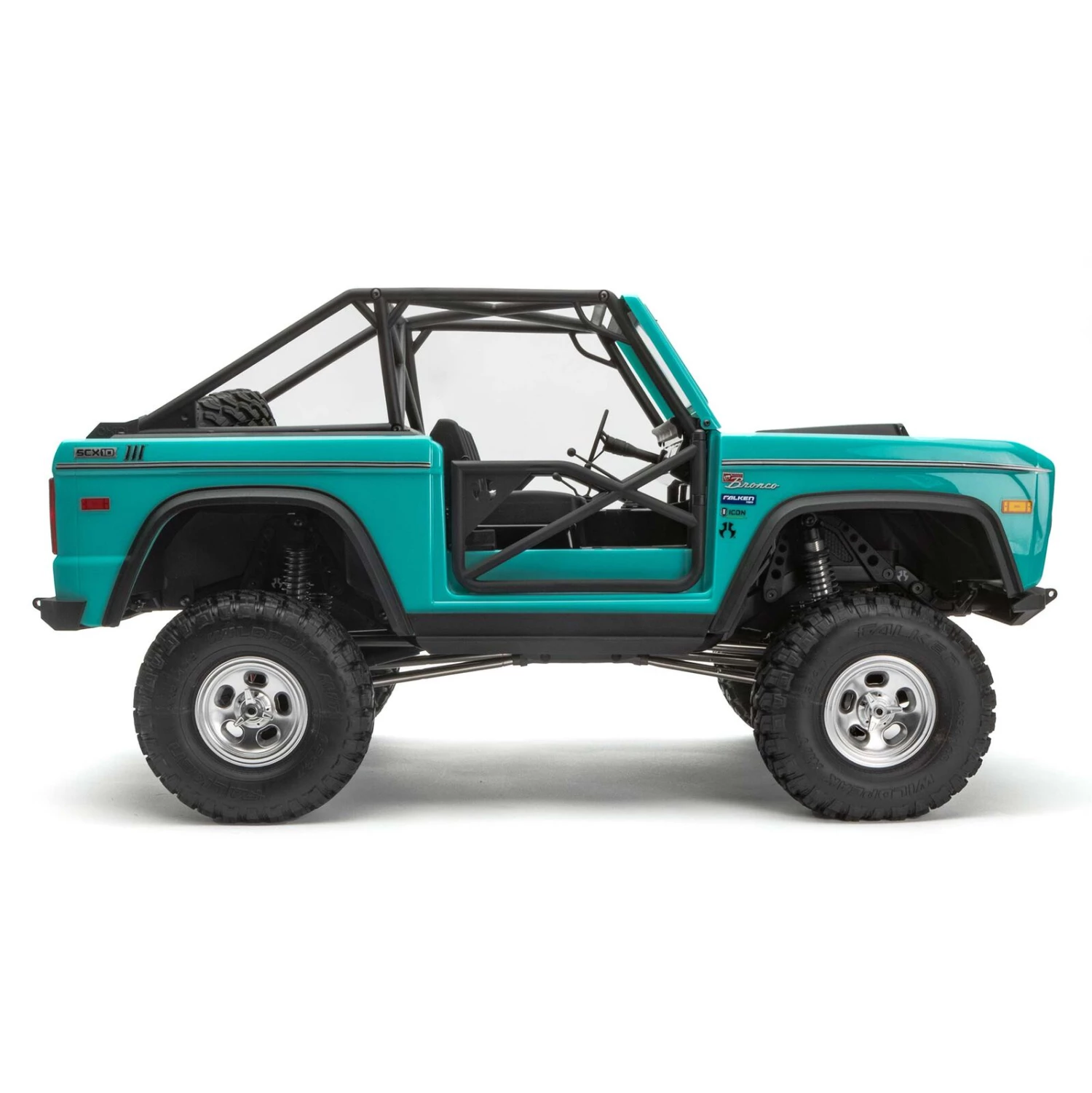

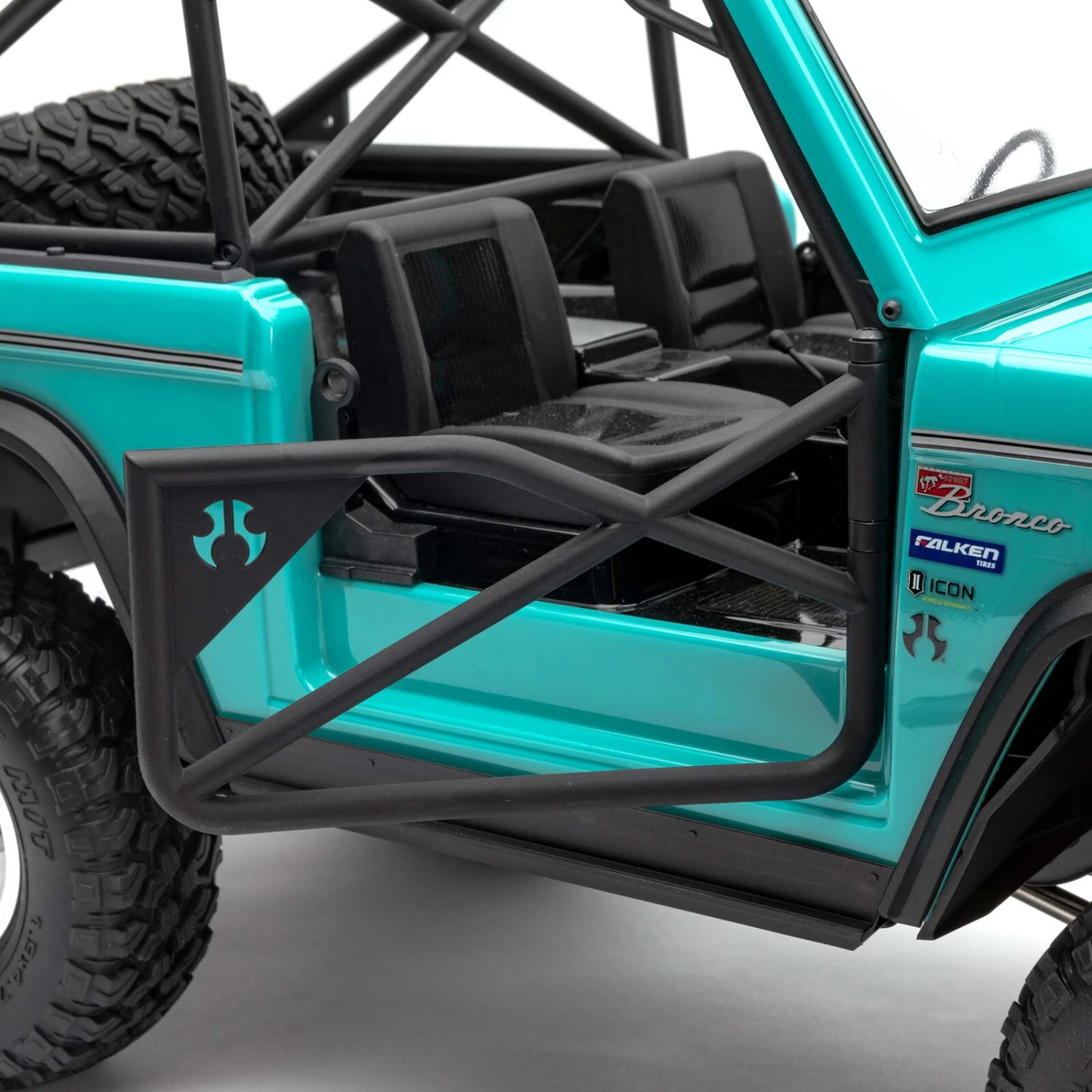

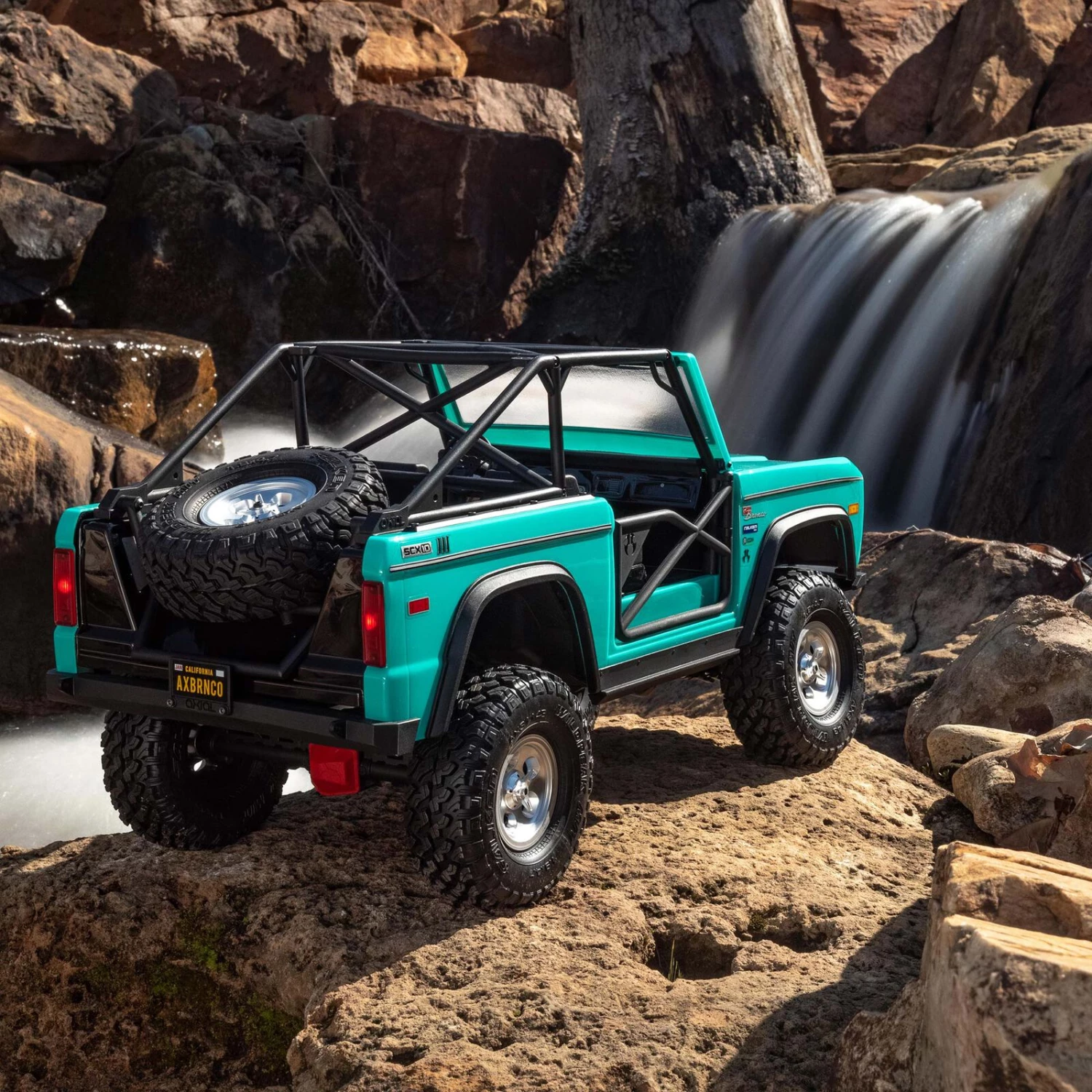

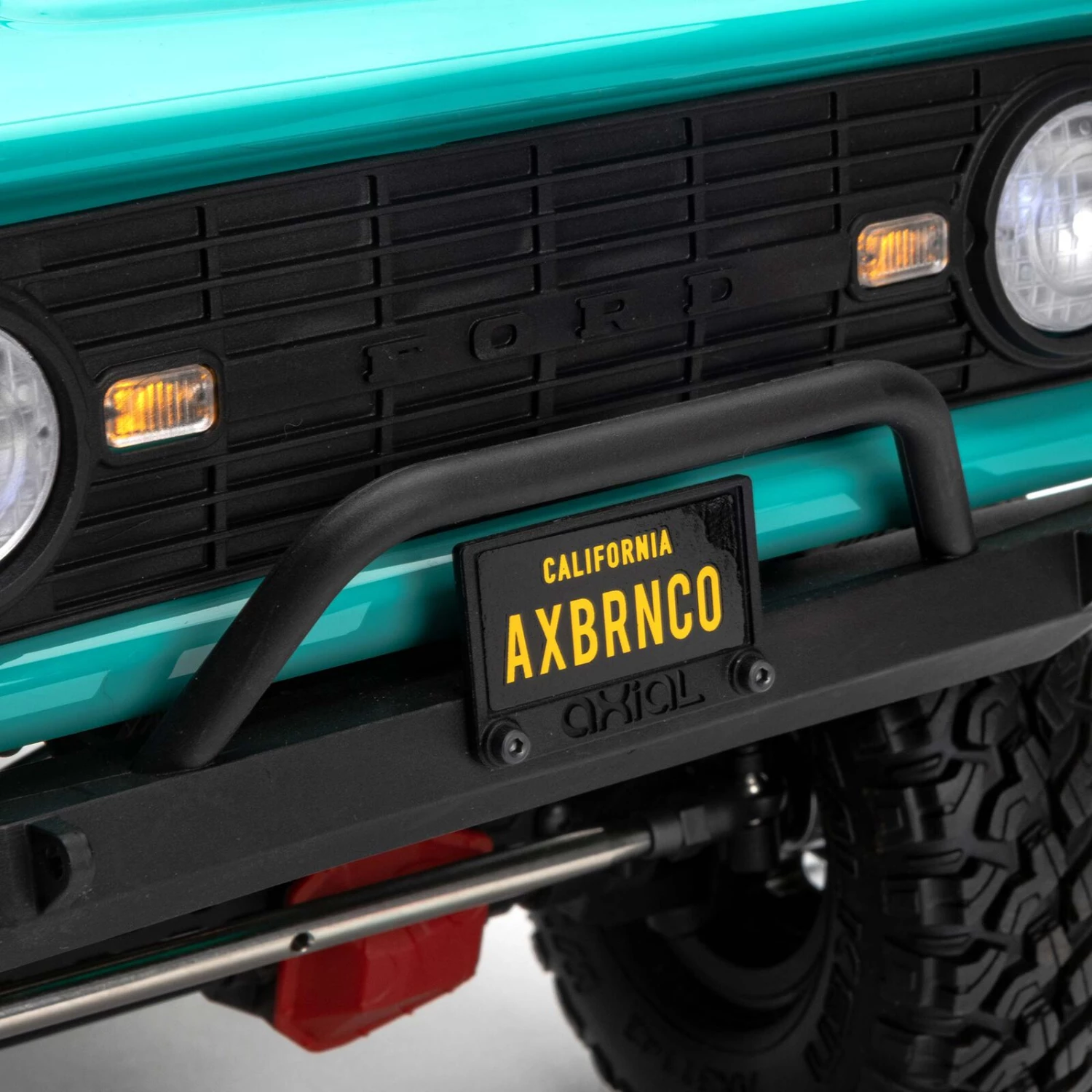

- Officially licensed Early Ford Bronco body with realistic, molded tube cage, functional tube doors and many authentic scale details
- Front Dig function lets you lock the rear axle from the transmitter for the tighter turning radius of front wheel drive

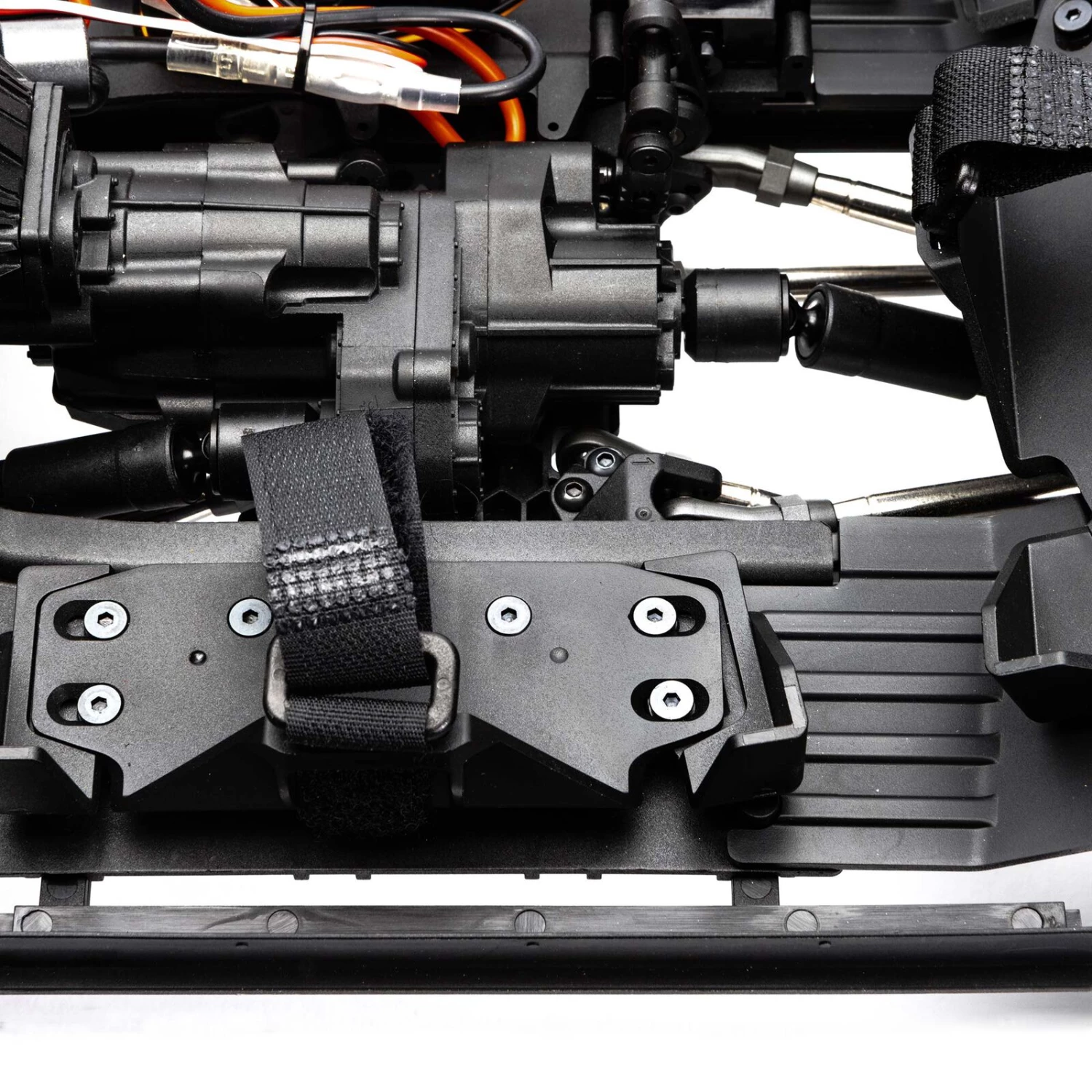

- Replica 5.0L V8 engine, transmission housing and transfer case protect the motor while improving scale appearance
- Smart-enabled Spektrum™ receiver and ESC/receiver unit provides telemetry data to the DX3 transmitter
- Spektrum™ servo, receiver and ESC are waterproof and ready for driving in any weather and trail conditions
In The Box
- (1) Axial® SCX10™ III Early Ford Bronco 1/10 Scale 4WD RTR
- (1) Axial 35T Electric Motor (installed)
- (1) Spektrum S614 Waterproof Metal Gear Surface Servo, 23T (installed)
- (1) Spektrum SX107 Micro Analog Metal Gear Surface Servo, for Dig function (installed)

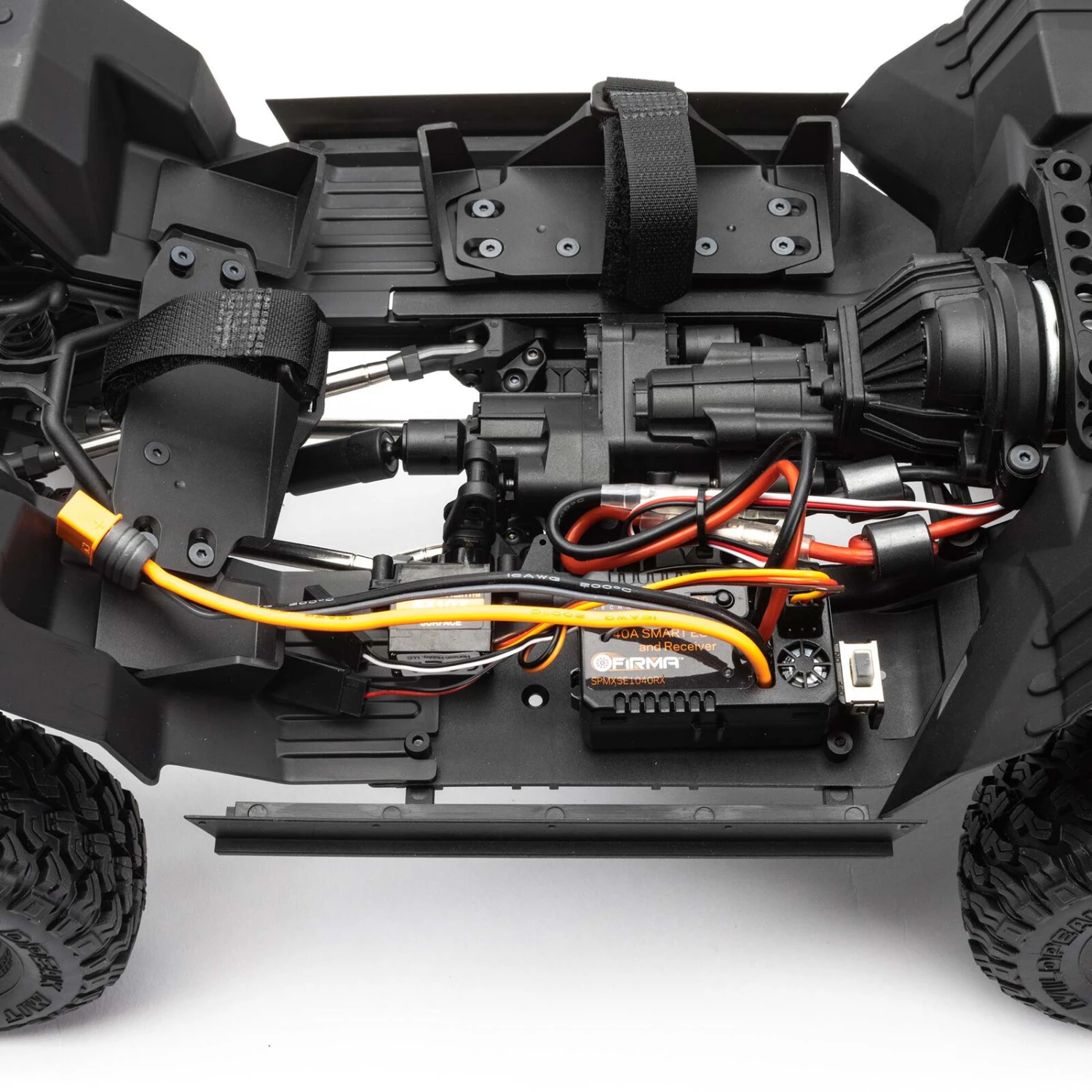

- (1) Spektrum Firma™ 40A Brushed Smart 2-in-1 ESC and Receiver (installed)
- (1) Spektrum™ DX3 2.4GHz Transmitter
- (4) AA Alkaline Transmitter Batteries
- (1) Product Manual
Needed to Complete
- (1) 2-3S Standard or “Shorty” LiPo Battery with EC3™ or IC3™ connector
- (1) Compatible Battery Charger
- (4) AA batteries for Transmitter
Features
Product Specifications
| Charger | Sold Separately |
| Differential | Locked |
| Receiver | Included |

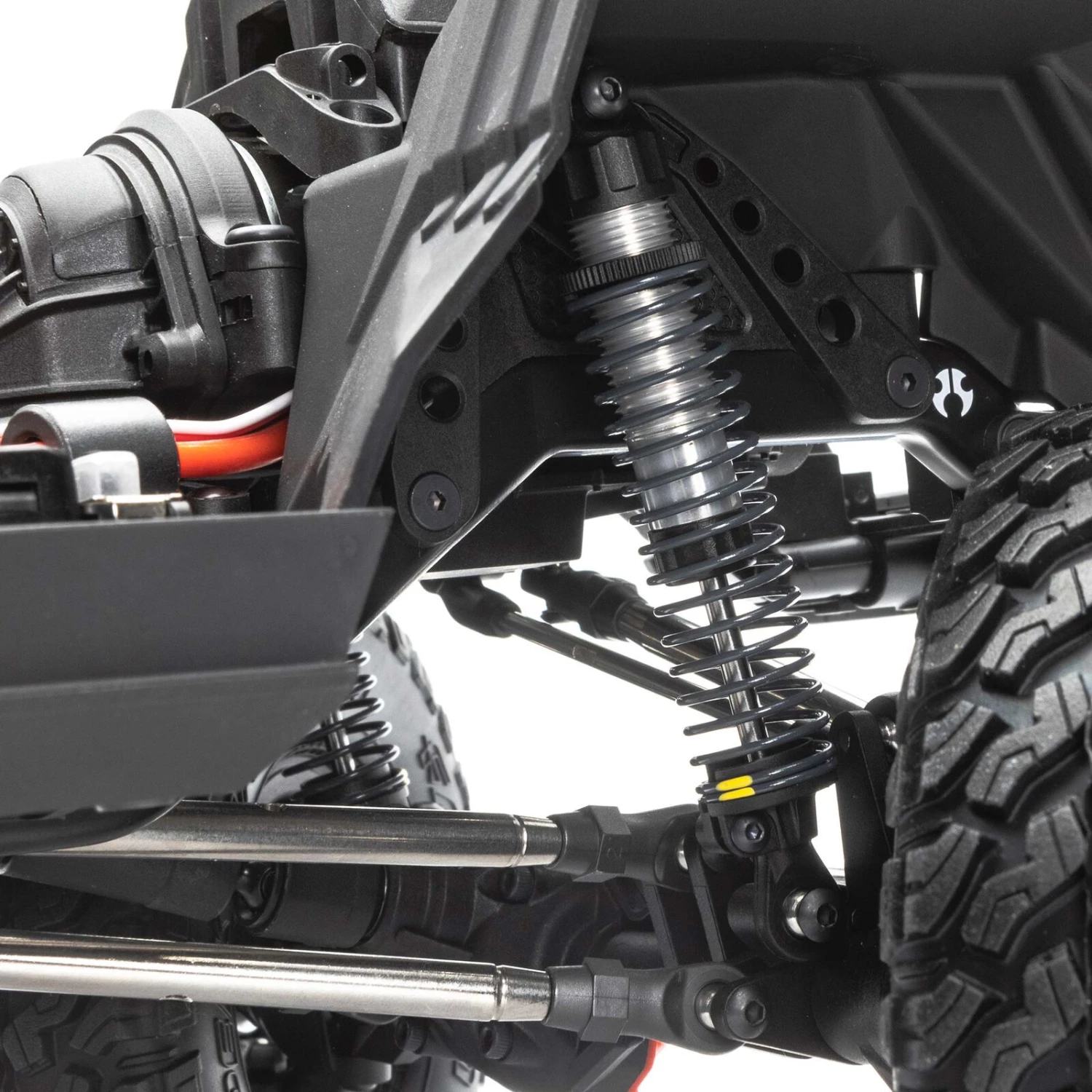

| Shock Type | Oil-Filled/Coil-Over Spring |
| Battery | Sold Separately |
| Ground Clearance | 2.5″ (63.5mm) |
| Motor Size | 540 |
| Product Length | 20.75″ (527 mm) |
| Technology | Smart |
| Radio | Included |
| Product Width | 9.25″ (235 mm) |
| Front Track | 9.25″ (233mm) |
| Inner Tire / Outer Wheel Diameter | 1.9 in |
| Pinion | 14T |
| Scale | 1/10 |
| Wheel Width | 1″ (25.5mm) |

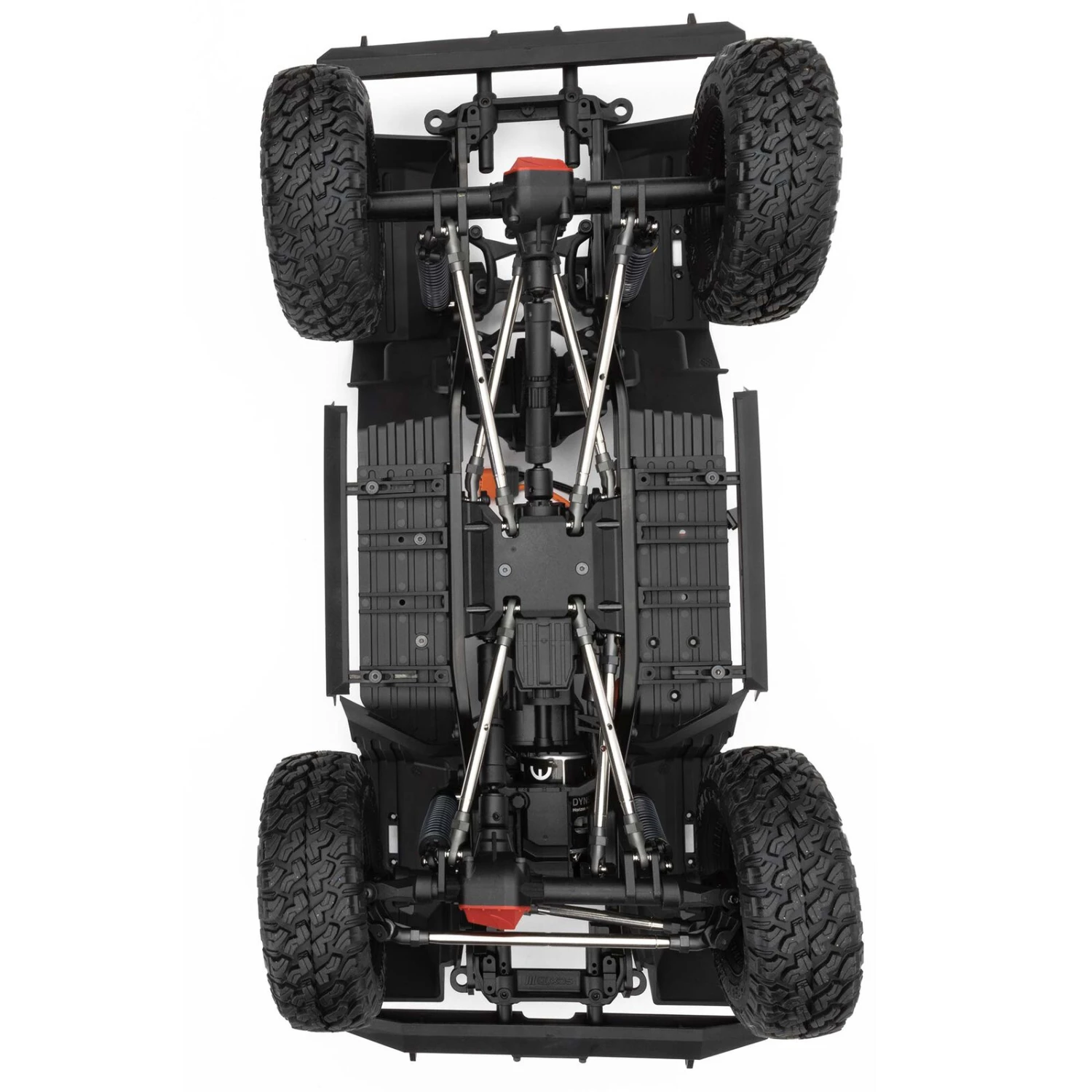

| Suspension | Multi-Link Solid Axle |
| Tire Type | M/T |
| Spur Gear | 40T |
| Steering Type | 2WS |
| Power Type | Electric |

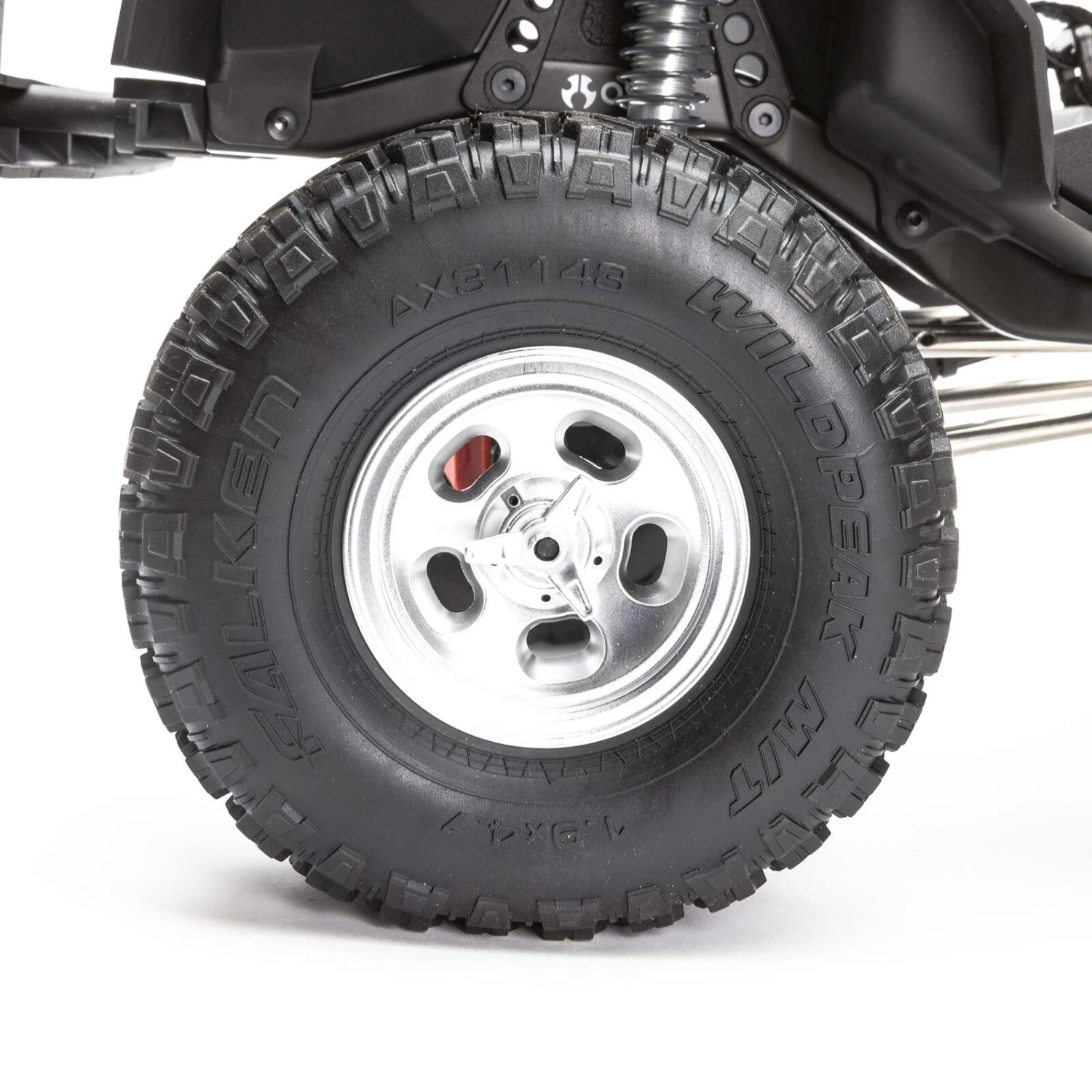

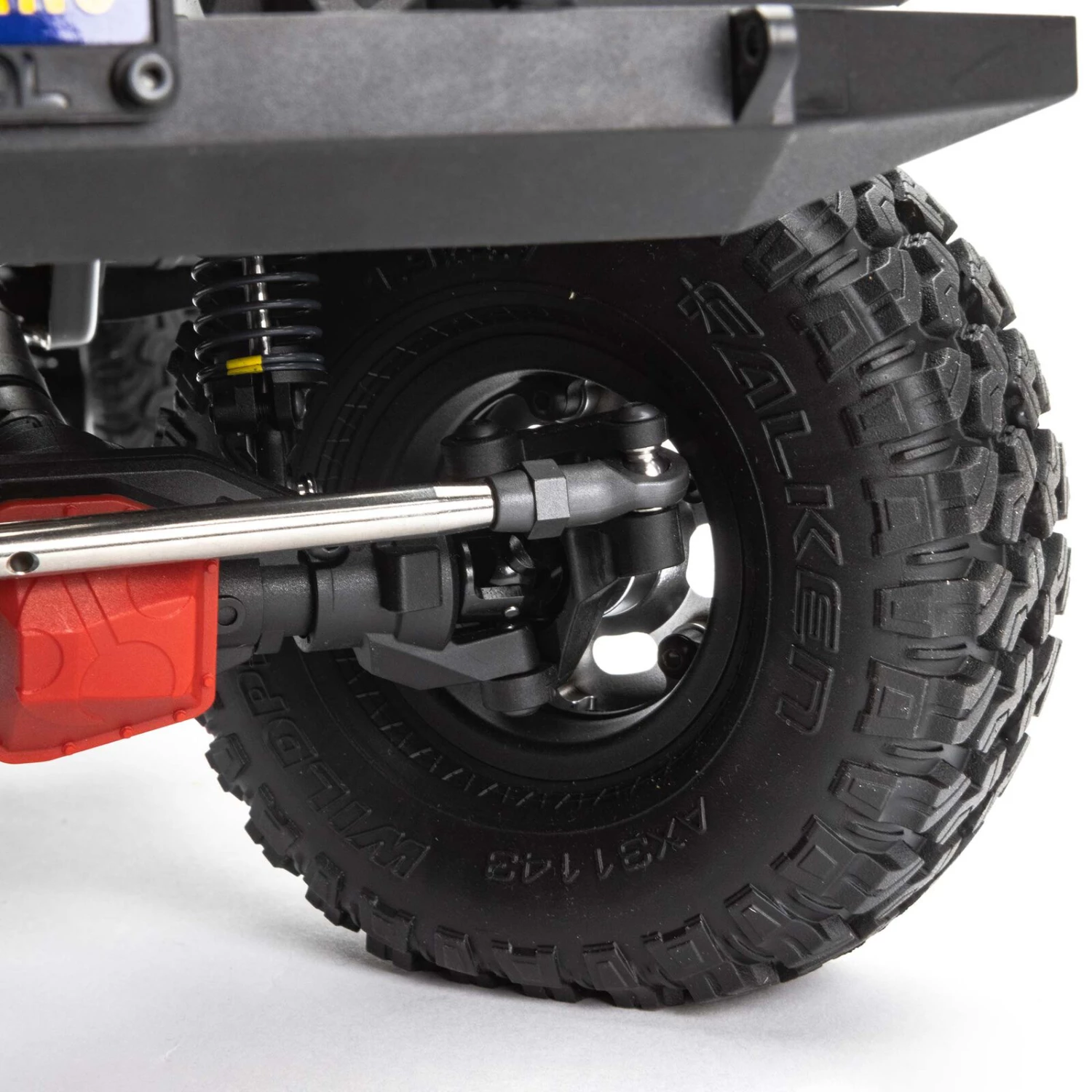

| Tire Tread | Falken Wildpeak |
| Product Weight | 7.24 lbs (3.28kg) |
| Gear Pitch | 32-Pitch |
| Vehicle Type | Rock Crawler |
| Servos | Included |
| Water-Resistant | Yes |
| Ball Bearings | Complete Vehicle |

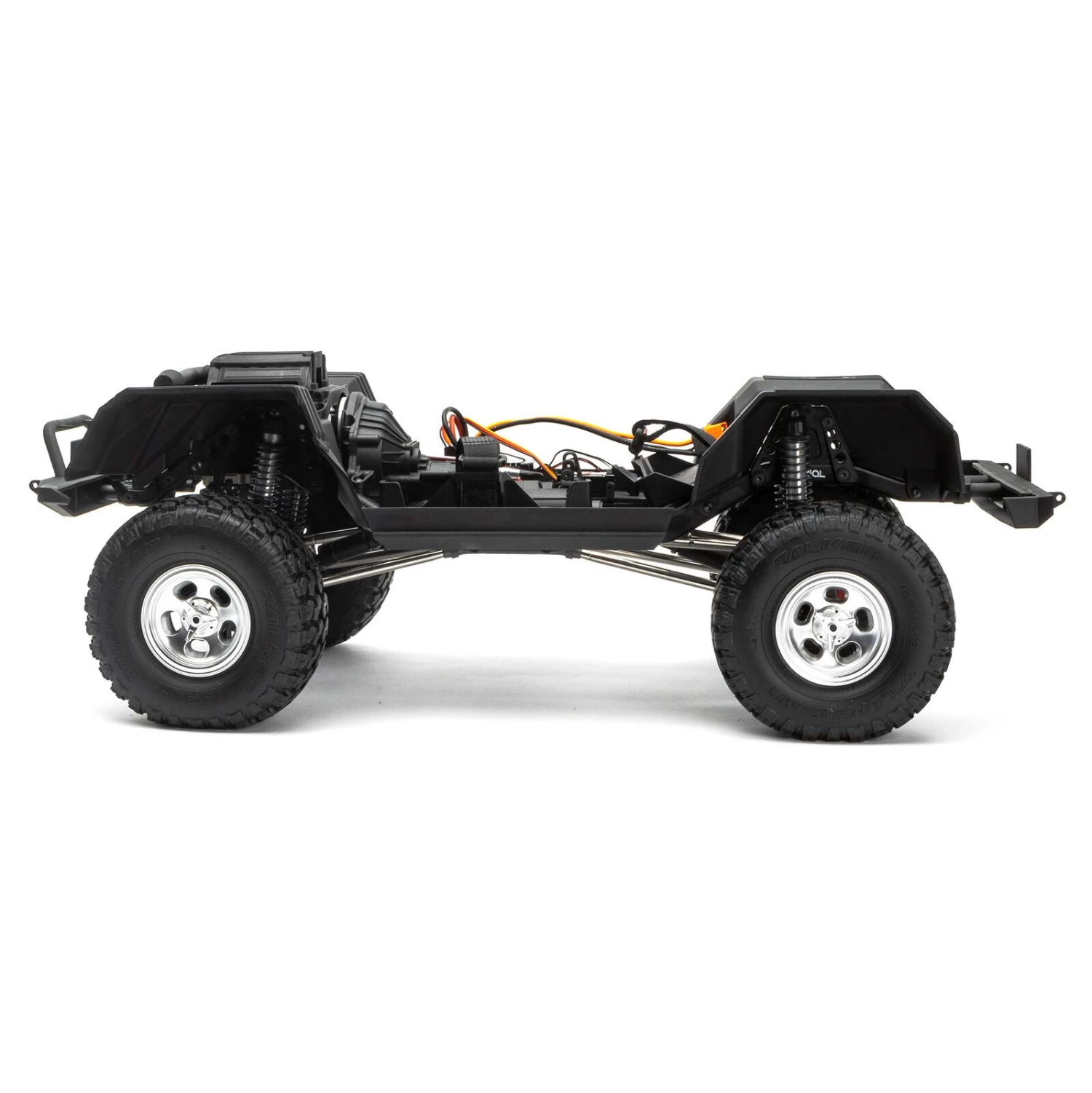

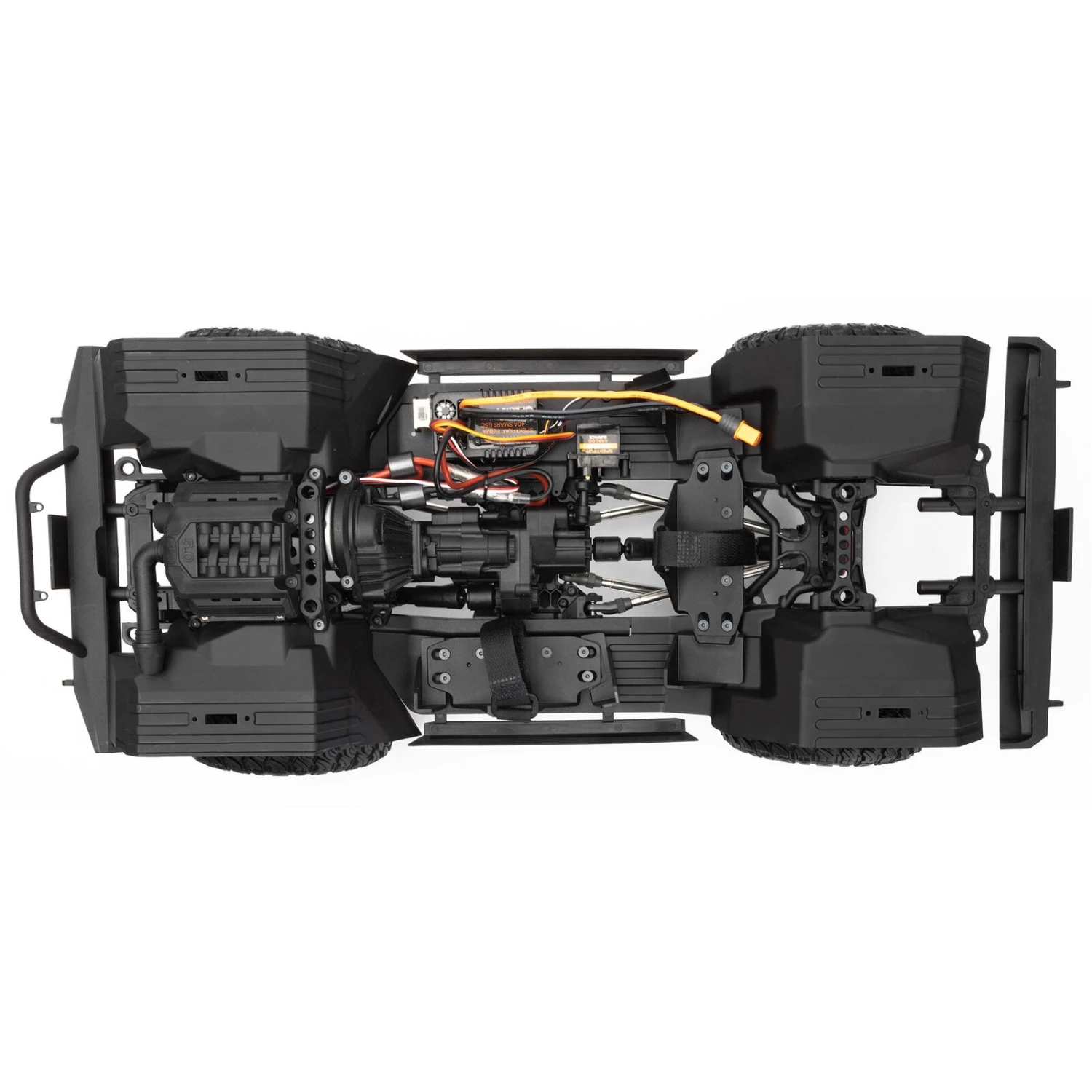

| Chassis | Adjustable Steel C-channel |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Product Height | 9.75″ (248 mm) |
| Tire Compound | R35 |
| Final Drive Ratio | 45.6:1 Low / 31.3:1 High |
| Motor Type | Brushed |
| Rear Track | 9.25″ (233mm) |
| Speed Control | Included |
| Wheelbase | 12.3″ (312 mm) |
